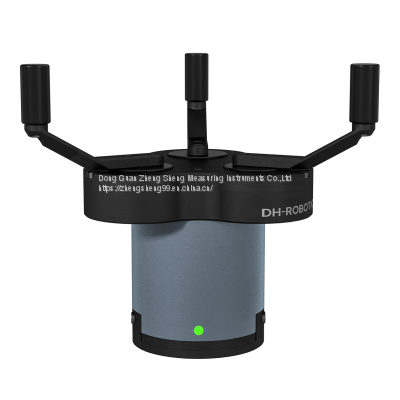

Servo-Electric Grippers CGI-100-170

Product Details

Product Description

Product Description
Product features
1.High performance
2.Long life
3.Three fingers to the heart grasp
Application scenarios
Accurate and stable grasping of cylinder workpiece in automotive parts, automation equipment, precision machining and assembly
Hold power(one side) ：30~100N
Recommended clamping diameter (inward clamping) ：ф 40~ф 170mm
Maximum recommended load ：1.5kg
Open/close time : 0.5s/0.5s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 1.5kg
The transmission way ：Gear transmission
size : 156.5mm×124.35mm×116mm
Runtime environment：
Working voltage ：24V DC±10%
Ratted current ：0.4A
Peak current ：1A
Protection grade ：IP40
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
