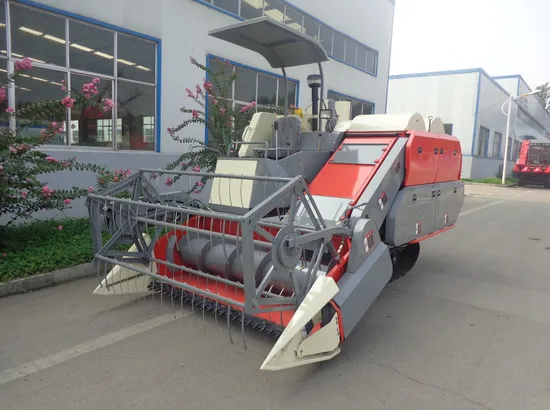

Silon Mini Grain and Rice Harvester (4LZ-2.0D)

Product Description

Features:
1) 2 meters cutting width, Big Hydraulic LQ75 gear box with 37cc HST, high efficiency.
2) 75/88HP Turbo-charged Diesel Engine with stronger power and low fuel consumption.
3) Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss
4)Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
5) Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
6) Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields. Convenient for gathering by baler machine.
7) Higher ground clearance and Lower ground pressure, better for passing in paddy field.
8) New design of tension frame, Reinforce belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance.
9) Sided small grain tank of 0.3CBM and Big grain tank of 1.0CBM at Option.
Technical Parameters:

Model	4LZ-2.0D
Brand Name	Silon
Type	Self-Propelled Full Feeding
Fit harvesting crop	Rice, Wheat, Rapeseed
Working Efficiency	0.2~0.47 hm2/h
Overall Dimensions (L x W x H)	4750×2350×2360 mm
Weight	2620 kg
Engine	Turbo-charged Diesel Engine
Model	A498BZT / A498BZT88/24
Type	In-line, water cool, 4-stroke,Direct injection
Rated Power	75HP (55KW) / 88HP (65KW) / 2400 rpm
Fuel tank	80L
Fuel consumption per hectare	≤30 Kg/Ha.
Chassis
Rubber Track	400/450/500*90*48mm
Transmission	HST F:3 / R:3
Ground Pressure	≤18 Kpa
Min. Ground Clearance	310 mm
Header
Cutting Width	2000 mm
Feeding capacity	3Kg/S
Type of Lifting	Hydraulic
Lifting of Reel	Hydraulic
Steering	Hydraulic
Conveyor	Chain rack tooth type
Threshing Cylinder	Tangential Flow + Axial Flow, Dual Spike-tooth type
Cleaning	Fan (front blowing + rear suction)+Sieving+re-thresher
Discharging	0.3CBM	Manual type & bag
	1.0CBM	Auto type with discharger auger
Grain Tank	1.0 CBM (500-550 kg) / 0.3CBM (150-200 Kg)
Total Loss
Rice	≤1.5%
Wheat	≤1.2%
Breakage	≤1.5%
Impurity	≤1.0%

---
