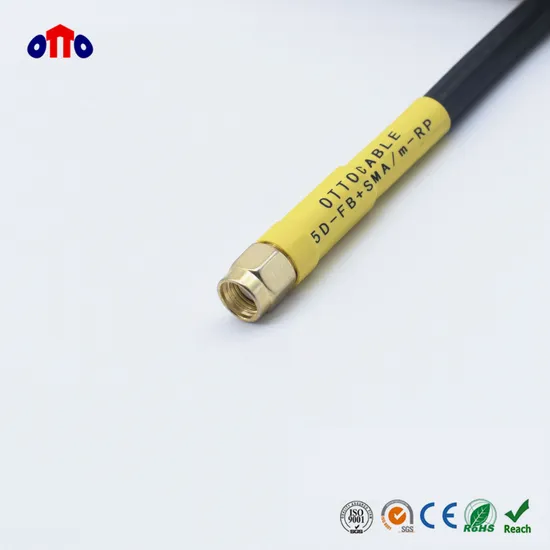

Pre-Made Coaxial Cable 5D-FB Cable Assembly with SMA Plug for Antennas

Product Description

Pre-Made Coaxial Cable 5D-FB Cable Assembly with SMA Plug for Antennas
Application:
• Antennas
• Base Station Atenna
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Equivalent to LMR300 cable
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction

Item	Material	Diameter(mm)
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper / Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper / Al-Mg Wire Braid PVC/PE/LSZH	1.80 5.00 5.10 5.60 7.50

Electrical Characteristics

Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) VSWR Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm)

50±3 82 82.0 ≥20 ≥75 ≤1.2 -25 to +70 -25 to +70 27.0

Attenuation (@20ºC)

Frequency(MHz)	Max Attenuation(dB/100m)
800 1200 1500 1800 2000 2500 3000	19.0 24.0 27.2 29.7 32.5 35.8 40.9

---
