Underwater Inflatable 10t Air Lifting Bags

Product Description

Underwater lifting bags include parachute type lifting bags and totally enclosed lifting bags, comply with IMCA D016 ceritifcate
Underwater lifting bags include two types, parachute type lifting bags with an open bottom skirt, totally enclosed lifting bags.
Underwater lifting bags are fabricated from heavy duty polyester cloth coated with PVC coating fabric. Manufactured and certificated comply with IMCA D016 "Underwater Air Lift Bags" 2007.
Parachute Type Lifting Bags
DooFlex Open Bottom Parachute Type Lifting Bags is designed with water drop shaped units, which is widely used for buoyancy support or lifting sunken objects operation of underwater diving work. The open bottom design make the operation more safety. It's one kind of very useful floataion device for the diving salvage, underwater salvage, and underwater buoyancy support and refloatation.
Each Open Bottom Air Lifting Bag is equipped with manual air dump relief/dump valve, which can be controlled easily to change the buoyancy by the bottom rope. And certificated heavy duty polyester webbing with end shackles, and air inlet stainless/ brass ball valves are equipped for the lifting operation. Each parachute lifting bag is complete and ready for use when leaving our manufacturing facility.

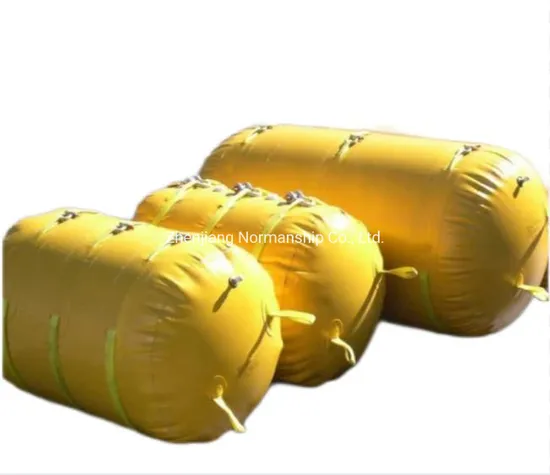

Totally Enclosed Lfiting Bags
Totally Enclosed Lifting Bags (Salvage Tube, Inflatable Buoyancy Bags) is one kind effective alternative of Open Bottom Parachute type lifting bags for the surface buoyancy support operation.
Totally Enclosed Lifting Bags can be used for buoyancy support and refloatation operation in shallow water and on the surface, support/salvage pontoons for bridges, floating platforms, dock gates, sunkend objects or military equipment. Totally enclosed lifting bags offer an effectual method of reducing the draught of vessel and floating underwater structures. Then also provide an ideal system of buoyancy for cable and static buoyancy support.
Totally Enclosed Type air lifting bags are cylindrical shaped units, fabricated from heavy duty polyester cloth coated with P.V.C, completely equipped including the appropriate quantity of automatic air relief valves, certified heavy duty polyester webbing with shackles (with safe working factor 6:1), and air inlet stainless/brass ball valves.

Model	Lift capacity	Diameter	Length	Pick up points	Weight
D-50L	50	0.3	0.6	2	5
D-100L	100	0.4	0.9	2	6
D-250L	250	0.7	1.1	2	8
D-500L	500	0.9	1.4	2	10
D-1m3	1000	1	1.8	2	12
D-2m3	2000	1.2	2.3	3	19
D-3m3	3000	1.4	2.5	3	34
D-5m3	5000	1.4	3.8	5	46
D-6m3	6000	1.6	3.6	5	66
D-8m3	8000	1.8	3.8	6	78
D-10m3	10000	2.1	3.6	6	89
D-15m3	15000	2.2	4.6	7	120
D-20m3	20000	2.4	5.6	7	138
D-25m3	25000	2.5	5.7	7	189
D-30m3	30000	2.5	6.1	8	280
D-35m3	35000	2.7	6.2	8	310
D-50m3	50000	2.9	8	9	340

---
