X5750 X5750A Xili Factory Metal Dro Milling Machine for Sale

Product Description

Product Description
X5750 X5750A XILI Factory metal dro milling machine for sale
1,Table 3 axes with ball screws, high precision
2,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
3,Mechanical change speeds in head stock, powerful milling
4,Table with an extra supporting column, big load, high accuracy
5,It can mill any angle surface through front half-sphere by swiveling millinghead
Welcome your inquiry !!!

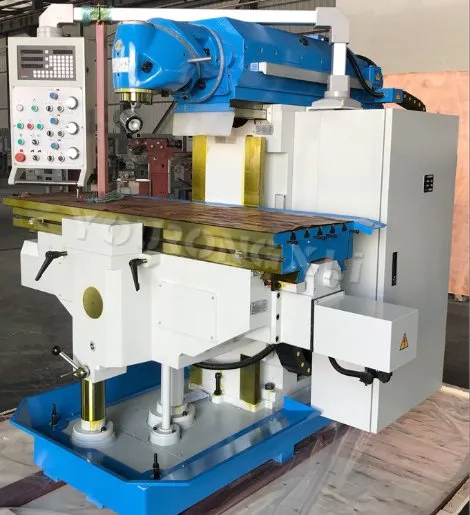

Detailed Photos
Mechanical change speeds head stock universal milling head 360 degree Big Work table 2000/1600*500mm

3 Servo motors +3 ball screws Double supporting column, 1800kg table load electronic hand wheel+DRO operating box

Product Parameters

Specifications	Unit	X5746	X5750	X5750A
Table size	mm	460*1235	500*1600	500*2000
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	900*650*450	1200*700*500	1400/700/500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	58-508	50-550
Distance from spindle center line to column	mm	20-670	28-728
Main motor power	Kw	5.5	7.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	800	1800
Overall size	mm	2570*2035*1990	2625*2460*2080	2625*2860*2080
weight	kg	3600	4200	4500

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.


Company Profile
Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.Hope we can built long-term business relationship with you.
Our customers
FAQ
1. What is the MOQ ?
Our minimum order quantity is 1 set.
2. What is the payment term ?
T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.
30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.
3. What is your trade terms ?
FOB, CIF, CFR,EX Work.....all are acceptable.
4. How long is the guarantee ?
12 month after machine delivery from factory.
5. How can i start the order ?
You could contact here in made in China, or contact by


If you need any further information, feel free to contact us.

---
