2500mm Panel Bneder Bending Machine for Stainless Kitchen Cabinets

Product Description

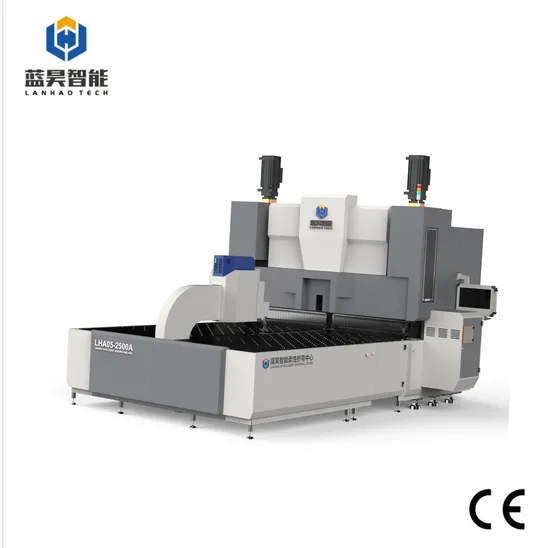

The LHA-A series is an intelligent flexible bending center that adopts the pressing arm loading method, which can realize automatic tooling change. The whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and all kinds of flat or special-shaped work pieces. Automatic re-tooling pressing tool, need not manual re-tooling set up. More convenient and more effecient to operate . It is equipped with a bending assistant tool which can realize partial bending of the work piece. Product Parameters

LHA-2500A Technical parameters
Feeding structure	Pressing arm
Work table structure	Brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	2500mm
Max.Bending size	L 2500mm X W 1500mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm (customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	82KW
Average power	About 3.0KW
Noise	About 50 dB
Machine size	L565cm X W320cm X H340cm
Total weight	About 18 tons
User operating environment	Win7 or above system
Max. Bending thickness	UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0 mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel thickness	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	21
