Vertical core Heavy duty drilling machine (Z51100) auger drilling machine

Product Description

Vertical core Heavy duty drilling machine (Z51100) auger drilling machine
Product Description
Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on. Product Parameters
Product main technical specifications:

Specifications	Z51100
Max drilling diameter	100mm
Max feed resistance	45000N
Max. spindle allowable torque	1150N.m
Spindle taper	Morse NO.6
Distance from spindle axis to column guideway	480mm
Spindle travel	310mm
Spindle box travel	300mm
Spindle speed	26-320r/min 6 steps
The amount of feed(mm/rev)	0.096-0.717r/min 6 steps
Working table stroke	300mm
Working table surface size	760×650mm
Distance from spindle nose to table surface	850mm
Main motor power	7.5kw
Cooling pump flow	25L/min
Overall dimension	1465×970×3170mm
N/W	3500kg

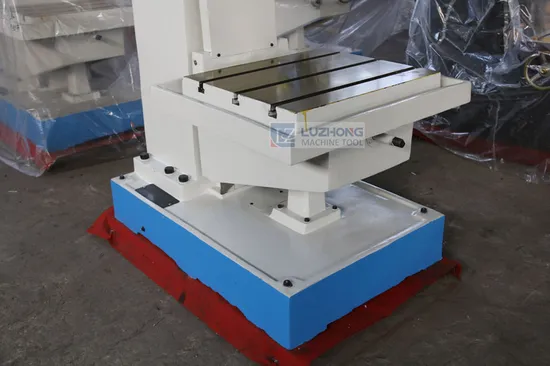

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
