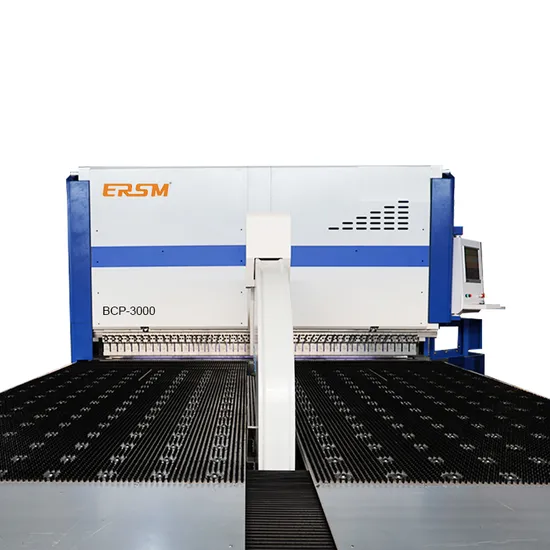

Flexible Automation Max Bending Height 170mm (Customized) Panel Bender Machine

Product Description

Produce Features
· Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)
· Full servo control, low energy consumption. Servo-based torque feedback system.
· Muliti-axis linkage control, with a high degree of automation.
· Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)
· C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.
· Easy programming. Operator can customize the design and control of complex sheets according to their needs.
· Flatten hem instructions, press the edge up or down. Arc command, only need input the radius to realize the bending of the arc.
· Three-axis fully automatic positioning system.Multiple positioning.
Product Parameters

Model		BCP-3000-2.0
Feeding Structure		Pressure arm type
Max. Bending Length		3000mm
Max. Bending Size		3000*1250mm
Axis		18
Min. Inner Size of Four-side Bending		160*260mm(Customized)
Min. Inner size of One-side Bending		160mm(Customized)
Max. Thickness	Stainless Steel(SS)	1.5mm
	Carbon Steel (MS)	2.0mm
	Aluminum(AL)	3.0mm
Min. Thickness		0.3mm
Min. Accuracy		0.01mm
Bending Angle		-90°-90°, >1.5mm
		0°-180°, ≤1.5mm
Max. Bending Speed		0.2s
Max. Feeding Speed		120m/min
Max. Bending Height		110mm
Min. Bending Height		8mm
Min. Arc Radius		2mm
Rated Voltage		380V
Motor Total Power		115KW
Average Power		10KW
Noise		55dB
Size		6900*4300*2800mm
Weight		35T
Workbench Structure		Brush and universal ball

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.

---
