| US$2,500.00-4,600.00 | 1 Set (MOQ) |
| Product Parameters |
| Laser | Type | Hermetically sealed CO2 RF lasers |
| Pulse frequency range | 0~25KHz | |
| Power | 30W | |
| Beam expanders | 4x (customizable) | |
| wavelength | 9.3μm,10.2μm,10.6μm | |
| laser class | Class 4 laser products ~ in line with IEC60825-1 standard | |
| Identify attributes | Identify the direction | 0- 360° |
| Identify the region | 110~275mm(customizable) | |
| Standard working distance | 165mm | |
| Spot size | 1.8mm ( 0.2mm) | |
| Marking content | 1D and 2D barcodes, icons, Chinese and English and numbers | |
| Scribing speed | The fastest marking speed can reach 20m/s | |
| Interface | Operator interface | 10-inch full-color touchscreen |
| Communication interfaces | RJ45, RS232, RS485, USB SD card | |
| Operating environment | Rated voltage | 200~240V 50/60Hz |
| Ambient temperature | 5~40ºC | |
| The power of the whole machine | ≤300W | |
| Humidity range | non-condensing Relative humidity < 90% | |
| Ingress protection | Standard IP54 (customizable) | |
| Ingress protection | Air-cooled | |
| Product quality | 17kg |
| Marking Samples |

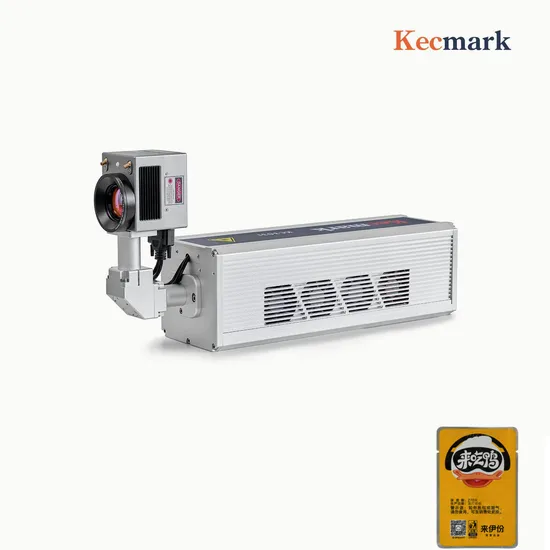

| Product Main Component | |||
| Laser emitter | Galvo & lens | control panel | 3D Column |
| On-site Installation |
| Application Industry |
| Food industry | Beverage industry | Pharma industry | Cosmetic industry |
| And many more ... | |||
| Chemical industry | Electronic industry | Personal home care industry |
| Optional Configuration |
| Conveyor Belt | Page dispenser machine | Smoke purifire |
| Our Advantages |
| Creativity - Innovation Independent R&D team,continuous innnovation with passion . Professional technical engineers team, concentrate on technical upgrade for better marking . | |
| Credibility - Integration Focus on industrial 4.0 , aims to improve the production efficiency and industrial automation . The markers could integrate into assembly lines and packaging machines and packaging lines. | |
| Economical and efficiency There is no consumables cost needed , with power connnected , it will keep working . Fewer maintenance required, just routine cleaning is okay . | |
| Precision and accuracy The marker configurated with world-advanced emitter and lens , which guarantees it will continuous to deliver precise and accurate marks. | |
| Widely compatible The marker suitable for versatile packaging subastrates and materials ,which commonly used on food & beverage industry, pharmaceutical , daily cosmetic and hygiene and more. |
| Company Profile |
| Packaging&Shipping |
| FAQ |
1.What a CO2 laser marking machine can do? CO2 marking machine is a kind of laser marking equipment with carbon dioxide gas as working medium. Carbon dioxide marking machine is suitable for a wide range of non-metallic and organic materials, such as wood, leather, paper, plastic, acrylic resin and rubber. 2.How to choose the most suitable laser marking machine? There are five points you need to consider before you choose a laser marker : - Consider what materials you want to mark . - Consider the laser power that you need . - Consider what accuracy and speed that you need . - Consider the support . - Else , safety ,budget,working field , 3.How laser marking machine works? Laser marking works by using a focused beam of light to mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance , and then leave the clear ,durable and permanent marks on the materials' surface . 4.How to installation and maintenance the laser marking machine? We will provide installation videos for you before shipping , you can check the videos and installation the laser marker ; if any questions during installation , we can support face to face technical service . Even you are navice , you can take that all easily . As for maintenance , the laser marking machine no neeed special maintenance operations , just routine clean is okay . 5.Can I get some tests before I decide which to buy? Yes , free test offering . Before order , you can send the packaging samples to us , the items that you want to mark the code on it , we will do free test for you with different laser , ensuring that you choose the most suitable ones and help you save money and energy . 6.What's the main difference between the laser marker and inkjet printer? Laser marker and inkjet printer are both coding method for industrial use . The biggest difference between this two method is that laser marker doesn't need consumables and maintenance , it has obvious advantages on anti-conterfeiting , the laser marks are legible and durable on the whole life cycle of the product , and it's resistant to erasure . And the inkjet printer , they deliver coding without alter the materials' properities and appearance , just leave the codes on the surface of the materials . On anti-conterfeiting and traceability solutions , it has safety risks . |
