OEM Direct Burial 144f Ug Fiber Optic Optical GYFTY53 Armored Underground Cable

Product Description

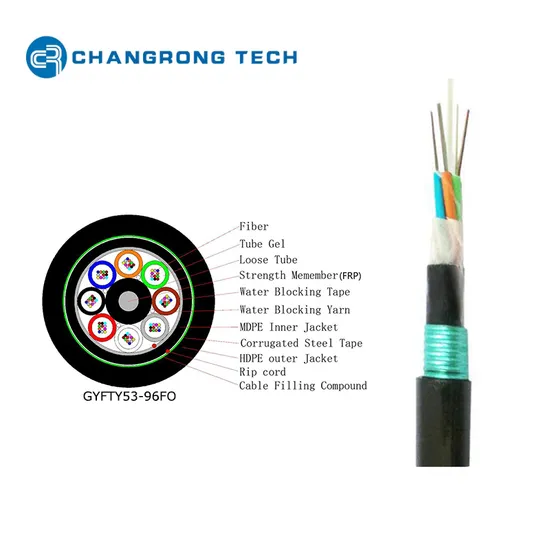

Cross Section

Detailed Photos

Product Description
The The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Then the core is filled with water-blocking compound and covered with a PE inner jacket. After the corrugated steel tape(CST) is longitudinally armored over the inner jacket, the cable is completed with a PE outer jacket.
• Good mechanical and thermal performance
• FRP as the central strength member
• Hydrolysis resistant loose tube
• Tube filling gel ensures critical protection of fiber
• Stranded compact structure eliminating contraction of tubes
• Rugged, durable PE jacket protects against UV radiation, fungus etc.
• Crush resistance and flexibility
• Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- Corrugated steel tape (CST) enhancing moisture-proof
Application
Direct-burial / Duct / Non Self-supporting Aerial Installation

Product Parameters

Item	Value
Fiber Counts	96
Tubes	8
Tube Material	PBT
Fiber Count/ Tube	12
Fiber Identification	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	2.0±0.1 mm
Thickness of Tube	0.30±0.05 mm
Color of Tube	Blue Orange Green Brown Grey White Red Black
CSM: FRP	2.5 mm
PE Coated	3.4 mm
Water Blocking Material (1)	Water Blocking Yarn and Water Blocking Tape
Ripcord (1)	Polyester * 1-Red
Thickness of Inner Sheath	Nominal 0.9 mm
Inner Sheath Material	MDPE
Water Blocking Material (2)	Filling compound
Ripcord (2)	Polyester * 1-Red
Peripheral Strength Member	Corrugated Steel Tape
Thickness of Outer Sheath	Nominal 1.9 mm
Outer Sheath Material	HDPE
OD of Cable	14.5±0.5 mm
Cable Weight	180kg/km
