High Quality 2 Heads Spiral Cardboard Paper Paper Core Tube Making Machine

US$9,800.00 1 Set (MOQ)

Basic Info.

Model NO.
CFJG-50
Paper Core Usage
Industry
Tube Machine Type
Paper Tube Making Machine
Gumming Type
Double Side
Layers of Roll Paper
10 Layers
Reelpipe Speed
1-25m/Min
Wall Thickness of Paper Tube
1 - 5mm
Certification
CE
Condition
New
After-sales Service
Online Solution or Dispatch of Engineer to Solve
Process
Paper Machine
Usage
Packing Paper Machine, Household Paper Machine
Automatic Grade
Automatic
Computerized
Yes
Transport Package
Wooden Case/Pallet
Specification
2700*1600*1800mm
Trademark
Chuangfeng
Origin
Zhejiang, China
HS Code
8441809000
Production Capacity
10 Sets/Month

Product Description

CFJG-50 Common Paper Tube Making Machine
Technical Parameter Control System
Paper Layer 10 Layers Main motor 4.0kw Wannan
Inner Diameter 20-100mm Inverter 5.5kw Delta
Wall Thickness 1-5mm PLC Xinjie
Winding Speed 1-25 meters/min Operating panel Xinjie
Speed Regulation by Inverter Electric Components CHNT
Winding Heads Two heads single belt Pneumatic Components Jingwei
Cutting blade Single high-speed steel blade Bearing Haerbin
Cutting Way Pneumatic
Gluing Way Double sides Main Configurations
Online Cutting Length 1000-5000mm Paper Reel Stand 10 Layers Cross Type
Working air pressure 0.6Mpa Gluing Unit 10 Layers Spraying Type
Power Supply 380V/3Phase/50Hz Inner Paper Stand 1 Set
Operator 1-2 persons Discharging Shelf 1 Set
Measurement & Weight Mandrel Shaft 2 Pieces
Measurement 2700*1600*1800mm Belt 2 Pieces
Working Space 7500*5000mm Extra Blades 5 Pieces
Weight 2100kgs Tool 1 Set

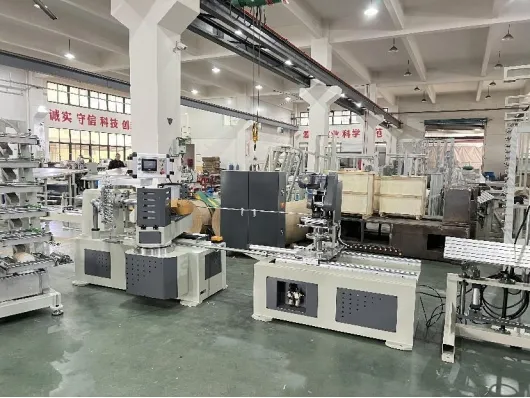

Latest Machine
Two heads single belt spial winding
Single blade pneumatic online cutting system (cutting length 1000-5000mm)
10 layers common type paper reel stand * 1 set
10 Layers spraying gluing system * 1set
Common inner paper reel stand * 1 set
Finished tube discharging shelf * 1 set
Finished Paper Tubes
