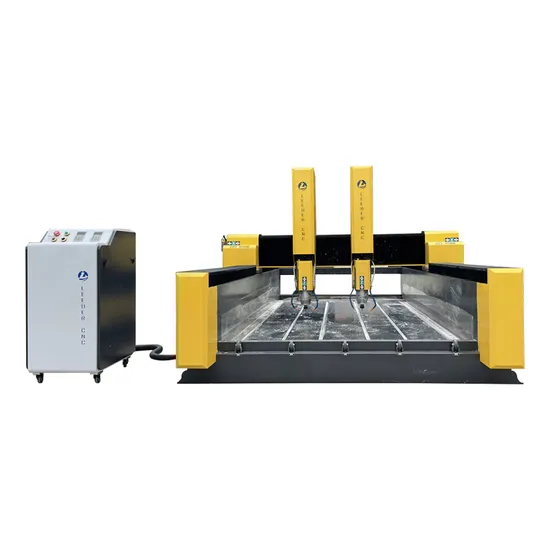

High Accuracy 3D CNC Carving Marble Granite Stone Carving Machine Multihead Stone Engraving Machine

Product Description

Machine Features
1. It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
2. The table has a sinking design, which can make the stone CNC machine run more smoothly.
3. The Z-axis motor has a brake function, which can prevent the machine head from falling and hitting the table.
4. The dustproof design prevents debris from entering the guide rail, effectively prolonging the service life of the guide rail.
5. With a movable rotary device, it can be used for engraving cylindrical workpieces.
6. Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
Product Parameters

Model	LES-1325
Working Size	1300*2500mm | 4*8ft
Spindle Power	5.5kw water cooling spindle
Spindle Speed	0-24000RPM
Driver System	Stepper / servo motor and driver
Control System	DSP controller
Working Table	Aluminum table with good pvc
Rail Guide	Taiwan HIWIN Square rails
Ball screw	TBI ball screw from Taiwan
Inverter	Fuling Inverter
Water Tank	Stainless steel water tank
X,Y,Z repositioning Positioning	±0.02mm
Command Language	G code
Interface	USB
Software	Artcam/Type3,other CAD/CAM
Voltage	AC380V/50-60Hz,3PH (Option: 220V/1phase)

Detailed Photos
Sample & Application
Suitable for big size hard materials such as Marble, Granite, Artificial stone,Tombstone, Ceramic tiles,Glass, etc, can be engraved by such machine, to produce arts and crafts, pictures, etc.
This machine can be also used to work on Wood, Advertising materials, mold, relief sculpture, 3D engraving & Cylinder object engraving.
Packaging & Shipping
1. Inner package: Stretch film and and plastic film for humidity
2. Outside package: Standard export plywood case
Company Profile
Jinan LEEDER CNC Technology Co.,Ltd. is one professional CNC machines manufacturer in Jinan City, capital of Shandong Province, China. All our machines are passed CE, I S O 9 0 0 1 certification to make sure the quality, and machines also support OEM, ODM customization.
We have professional sales team and after-sales team, with professional product knowledge, enthusiastic service attitude to win the trust and cooperation of global customers, our products are selling well widely all over the world and have good reputations. "LEEDER" CNC has become a leading brand in this filed.We export to USA,Canada,Russia,Australia,Europe,Brazil,Mexico,South Africa and other more than 100 countries.

---
