Qk1325X4m CNC Lathe with Double Chuck Pipe Thread Lathe

Product Description

QK1325 CNC pipe thread lathe
Product Parameters

SPECIFICATION OF CNC LATHE MACHINE
ITEMS		UNIT	QK1325 Pipe Threading Lathe
Capacity	Swing over bed	mm	800
	Swing over cross slide	mm	480
	Distance between centers	mm	4000
	Pipe threading range	mm	50-250
	Guideway width	mm	600
	Max. load capacity	T	4
Spindle	Spindle bore	mm	255
	Spindle speed steps	-	VF. 4 steps
	Spindle speed range	rpm	20-420
	Chuck	mm	φ630 4-jaw manual
Turret	Turret/tool post	-	Turret 8 position
	Tool shank size	mm	32 x 32
	Boring tool holder size	mm	50
Carriage	X axis travel	mm	420
	Z axis travel	mm	2600
	X axis rapid traverse	mm/min	4000
	Z axis rapid traverse	mm/min	6000
Tailstock	Tailstock quill diameter	mm	φ120
	Tailstock quill taper	-	MT6
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	VF. 15
	Coolant pump motor	kW	0.25
Machine Dimension	Width x Height	mm	1930 x1900
	Length	mm	5600
Weight	Net weight	T	9.6
Voltage			380V 50HZ

Configuration :
QK1325X4M configuration :
With FANUC 0I-TF5 CNC system; Turret 8 position; Front φ630 4-jaw manual chuck,1set
Rear φ630 4-jaw manual chuck,1set; Coolant system; Lubrication system; Lighting system,
Mobile hand-wheel; Semi-shield; Manual tailstock; Dead centre MT6#; Centre rest 100-300mm,
Toolbox; φ630 3-jaw manual chuck 2sets with connect plate
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.

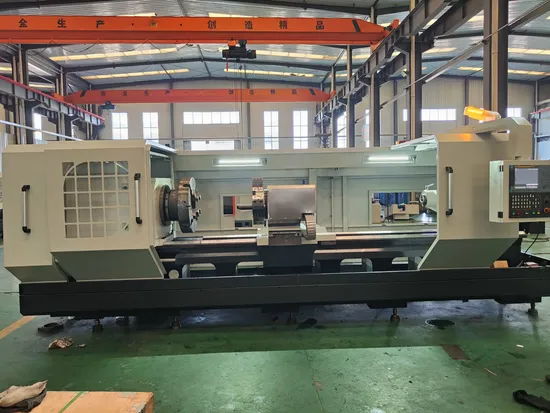

Detailed Photos

---
