Product Description
Product Description

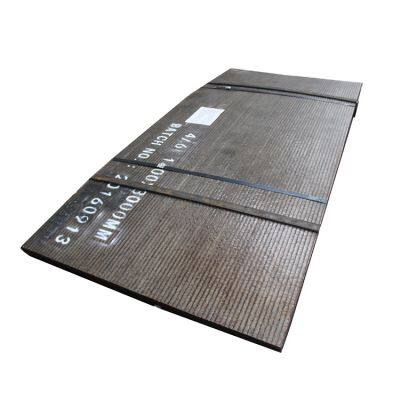

Product Description Product Namehardfacing bimetal steel plate wear resistant plate BrandWodon.Base PlateQ235/Q345.Hardfacing layerHigh chromium high carbide overlay.Chemical CompositionC(%): 3.0-5.0 ,Cr(%): 25-40.MicrostructureThe carbide (Cr7C3) volume fraction on the microstructure is above 50%.HardnessHRC58-65.Surface TreatmentHardfacing,clading,coated.TechniqueHardfacing,open arc welding,submerged arc welding.Wear ResistanceHigh wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel.Impact ResistanceMedium.Flatness tolerance±3mm/m.Thickness toleranceUniform overlay thickness, with tolerance within 0-0.5mm.Main Thicknesses3+3,4+4, 5+56+4,6+5,6+6,6+88+4,8+5,8+6,8+7,8+810+4,10+5,10+6,10+7,10+8,10+9,10+10,10+2012+4,12+5,12+6,12+7,12+8,12+10,12+11,12+1214+6,14+8,14+10,16+6,16+8,16+1018+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10Customized.Plate SizeOpen arc welding wear plate:1400*3400mmSubmerged arc welding wear plate:1400*3000mm,1400*3500mm, 2100*3500mm.Customized.Place of OriginChina.ApplicationMining,Steel,Cement,Power,Port,etc.If you have another question, pls feel free to contact us as below:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
