Product Description
Product Description

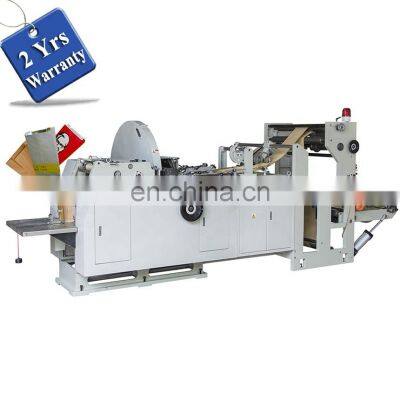

HD-400 sandwich automatic V bottom paper bag making machine VideosVideo demonstration only for referenceVideo 01: https://youtu.be/J79CINijNdkVideo 02: https://youtu.be/Qsrd_F3lKbwProduct Description Description: This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags. Features: 1. Controls bag length freely in a range through the human-machine interface2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.3. Equipped with an accurate photocell system for printed mark tracking4. Color mark error stopping system5. Double photoelectric sensor limit automatic correction control system6. Material lifting adopt pneumatic lift structure.7. Automatic lubrication system8, Accurate Color registration9, Automatic lift and lower the printing plate cylinderParameters:TypeHD-400+YT-4800HD-600+ YT-4800Cutting Length(C)150-460 mm230-625 mmBag Length(H)145-455 mm225-620 mmBag Width(L)70-280 mm70-280 mmGusset Depth(S)0-50 mm0-50 mmStandard Flap(P)12-20 mm12-20 mmPrint Color2 or 4 colors2 or 4 colorsPrint Width720mm720mmPrint Length200-800mm200-800mmMax print speed80m/min80m/minPrint precision0.2mm0.2mmMax.Speed400 pcs/min400 pcs/minPaper Thickness30-80 gsm30-80 gsmPaper Roll Width220-700 mm220-700 mmMax.Roll Diameter1000 mm1000 mmReel Inner Diameter76 mm76 mmTotal Power9 kw9 kwWeight of Machine4500 kg4600kgOverall Dimension 7600×1650×1850 mm7700×1650×1850 mmDetailed ImagesMan-machine Interface Touch Screen Automatic Counting System Color Mark Tracking SystemPaper Tube Forming SystemAutomatic Ink Mixing SystemPneumatic Paper Reel Loader Service Team Pre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessary Certifications FAQ1.Q: What information should i let you know if i want to get a quotation?A: What is your Max and Min product size in mm?B: What is your paper thickness in GSM?C: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.Packaging & ShippingWooden Case Loading and Transport Contact Us YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
>>
