High-Quality Material for Sealing, Oil Seal Engine Gasket Non-Asbestos Rubber Sheet

Product Description

Product introduction This product is made of non-metallic material as filler, nitrile rubber as binder, organic and inorganic fiber as frame, and is made of environmentally friendly sealing plate by roller pressing. Resistance to oil, water and general acid and alkali. The operating temperature is -50-250ºC.
Model: NY4250
Specifications: 1530*1000mm, 1530*1530mm, 1530*2000mm, 1530*4100mm, 1530*4580mm.
Main thickness: 0.5-5mm, 5.0mm above the board can be bonded.
Main colors: blue, green, black
The product thickness is greater than 0.8mm clip-on steel wire.
Material properties: non - asbestos fiber rubber sheet
Performance introduction

Number	Test item		Unit	Parameter value
1	Density,ASTMF-1315		G/cm3	1.8±0.1
2	Strength,ASTMF-152		Mpa	≥7.0
3	Compression,ASTMF-36		%	7-17
4	Resilient rate ,ASTMF-36		%	≥40
5	Sealing,ASTMF-37		Ml/min	≤1.0
6	Always gentle and soft		Bend on a round bar with a diameter 12 times the nominal thickness of the sample.	No crack
7	Impregnated IRM903 oil performance (149±2ºC, 5h)	Thickening rate	%	0-15
		Weight gain rate	%	≤20
8	Performance after immersion of ASTM Fuel Oil B (21ºC-30ºC, 5h)	Thickening rate	%	0-15
		Weight gain rate	%	≤20
Note 1: The gasket material with thickness greater than 3.0mm shall not be tested for transverse tensile strength Note 2: screen reinforced gasket material, do not do transverse tensile strength and nitrogen leakage rate test

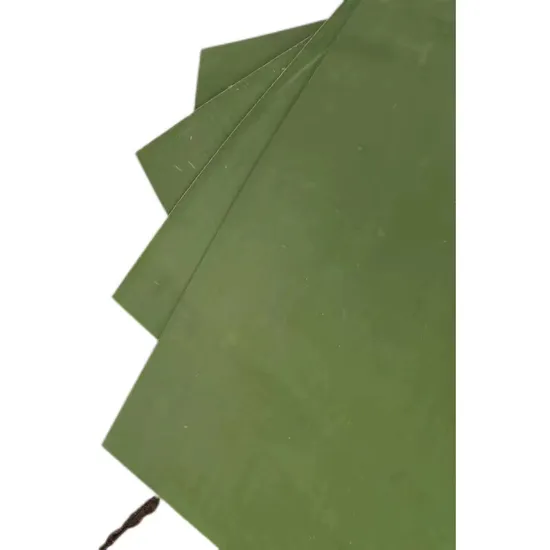

Product drawing
Production process
Field operation consignment

Experimental instrument Our certificate
Jiangsu Sealer Sealing Technology Co., Ltd. was founded in 2013, is located in the beautiful Siyang. The company registered capital of 34.7 million yuan, covers an area of 102 acres, annual production capacity of 2000 tons, the company employees a total of 86 people, including R & D personnel 8 people, the company mainly produces high-quality asbestos-free sealing rubber sheet, is a research and development, production, sales in one of the high-tech seal production enterprises. The company spirit of "honesty, faith first" purpose, "quality of survival, credibility and development, scale and market" business philosophy, actively play professional advantages, constantly expand market share, to build first-class brand. The company involves a wide range of fields, products have been widely used in chemical industry, shipbuilding, nuclear power and other industries, some products have been for Shangchai, tin chai and other engine enterprises supporting, has a wealth of sealing materials research and development and production experience.
FAQ
Q1: Are you a factory?
A1:Yes, we have our own factory and technical team.
Q2: How many workers do you have in your factory?
A2:We have 69 employees, 80% of whom have been with us for more than 5 years.
Q3: How do you do quality control?
A3:We implement the 9001 standard, from raw materials, samples, operation, semi-finished products to finished products for sampling and control.
Q4: Are customizations and small orders available?
A4:Yes, samples and drawings are provided, and we provide customized services.
Q5: What about the delivery date?
A5:1) It takes 3-5 days for regular samples and 7-10 days for custom samples.
2) Mass production for 15-20 days. If it's an emergency, we have a green channel
Q6: How do you handle customer complaints?
A6:If it is our fault, we can exchange it or refund it.

---
