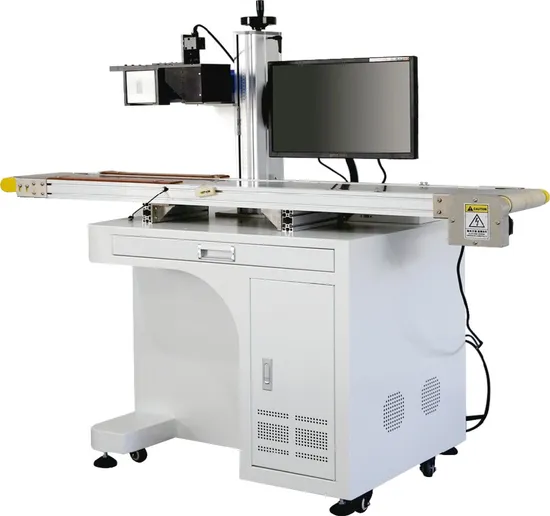

Visual Fiber Laser Marking Machine with CCD Camera for Metals

Product Description

The visual fiber laser marking machine is an advanced environmentally friendly marking machine. It can automatically carve metal materials, such as general metal materials and aluminum alloys (iron,copper, aluminum,magnesium,zinc, etc.), non-ferrous metals and aluminum alloys (gold,silver, titaium).
The process is particularly suitable for small products, as it eliminates the need for positioning trays and fixing fixtures, greatly saving the laser marking cycle and improve the production efficiency. Firstly, a template is formulated for the product and saved as a standard template. During processing, the product is photographed and compared and positioned by a computer. After adjustment, the product can be accurately processed. The shape of the processed product can be recognized as circular, square, or irregular.
Features
1. Small footprint, suitable for high-precision products, for correcting visual systems;
2. Automatic positioning mode, simply draw the border to achieve automatic positioning function, marking single or multiple products;
3. The marking content can be fixed or changed;
4. Multi template product processing, easy to switch between different products, image file following mode;
5. The camera has a large imaging field and is suitable for marking any flat product;
6. The product can be viewed from any angle and quantity, and the camera can automatically recognizes and make marks on it;
7. Large product splicing and marking can be achieved through electric platform control.
Product Parameters

Laser power	20W/30W/50W/60W/100W/200W
Laser wave length	1070nm
Laser frequency	20-100kHz
Marking size	110*110mm(70*70mm-800*800mm)
Repeatability	±0.002mm
Line speed	≤7000mm/s
Minimum character size	0.2mm
Minimum line width	0.01mm
Power supply	AC220V/50-60Hz
Control system	Computer
Cooling system	Air cooling
Remark: The parameters in this table are for reference only and shall be subjected to the actual product.

Working Samples
Certifications
Packaging & Shipping

FAQ
Q: Are you a manufacturer or integrator?A: We are both a manufacturer and an integrator. Q: Can you customize the machine?A: We support OEM/ODM service and can customize the machine according to your requirements.Q: How long is your warranty period?A: We offer a one-year warranty, except vulnerable and consumable parts.Q: What certifications do the laser marking machines hold?A: Our machines are certified with CE and ISO standards.Q: Do you support after-sales service overseas?A: Yes, we support after-sales service online and offline.Q: How long is the delivery time?A: Delivery time for standard machines: 7-15 working days Delivery time for customized machines: According to the degree of customization, about 1-3 monthsQ: What is the payment terms?A: We ship with full payment, and we can negotiate payment terms.

---
