EPS Machine Fabricado En China

Product Description

EPS Machine Fabricado En China Product Description

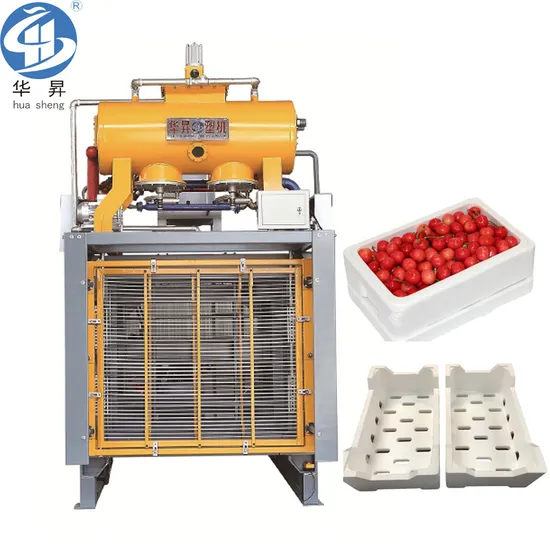

HS-CXJ Series EPS shape moulding machine main features:
The machine is made of all steel plate welded, with high strength and good stability; After the machine is welded and tempered at high temperature, it is processed by CNC machining center, and the bottom layer is fine sandblasted to remove rust, with high corrosion resistance; The stroke adjustment is controlled by encoder with high-precision and convenient adjustment; Conventional feeding and vacuum high-pressure feeding can be used. The material level of the barrel is induced and the material can be supplied by itself imported angle seat valve and high-frequency valve are adopted to ensure the steam stability and save the steam consumption; adopting high-efficiency vacuum cooling and an independent drainage system to greatly shorten the vacuum time and reduce the water content of the product; Adopting PLC control and computer touch screen operation for simple and stable operation; HS-CXJ Series EPS shape moulding machine technical data:

Item		unit	HS-CXJ-1800	HS-CXJ-2000	HS-CXJ-2230
Mould size		mm	1800*1600	2000*1800	2230*2160
Max. Product size		mm	1630*1430*400	1830*1630*400	2060*1990*400
Size for filling guns		mm	1650*1450	1850*1650	2050*2000
Steam	Pipe inlet	mm	DN100	DN100	DN150
	Mould inlet	mm	DN40	DN40	DN50
	Pressure	Kg/cm2	3~6	4~7	5~8
	Consumption	Kg/cycle	2~4	3.5~4.5	5~6.6
Cooling water	Pipe inlet	mm	DN80	DN80	DN100
	Mould inlet	mm	DN25	DN25	DN32
	Pressure	Kg/cm2	3~4	3.5~4.5	5~6.8
	Consumption	Kg/cycle	20~35	25~40	35~45
	Temperature	ºC	40~50	40~50	40~50
Compressed air	Pipe inlet	mm	DN65	DN65	DN65
	pressure	Kg/cm2	4~5	4~5	4~5
	consumption	m3/cycle	0.020~0.035	0.025~0.040	0.030~0.045
Vacuum system	Pipe inlet	mm	DN80	DN80	DN80
	Pumping rate	m3/h	280	280	280
	Motor	kw	7.5	7.5	7.5
Drain pipe size		mm	DN150	DN150	DN200
Power		kw	16.5	16.5	18
Machine size		m	5.15*2.72*4	5.15*2.92*4.2	5.25*2.72*4
Machine weight		kg	8000	10000	15000

Detailed Photos
Company Profile
Zhejiang Huasheng Machinery Equipment Co., Ltd, located in Fuyang, Hangzhou City, China, is a manufacturer
for high-end EPS foam machinery and EPS moulds.
Huasheng has developed into a modern and standardized production base with an area of over 18, 000 square meters,
more than 100 employees and a team of highly qualified and educated researchers, and obtained 15 invention patents.
The main products include high-precision automatic pre-expander machine, fully automatic shape molding machine ,
EPS block moulding machine, EPS foam mold, EPS lost foam white area equipment etc.
We warmly welcome all customers and friends from both domestic and abroad.
Company show
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory of EPS machine and EPS mold.
Q: what is your payment term?
A: 30% down payment upon order confirmation, 70% balance payment before shipment.
Q:what is your delivery time?
A: It takes usually 45-60days for machines, and 25-30days for EPS mold.
Q: Do you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.

---
