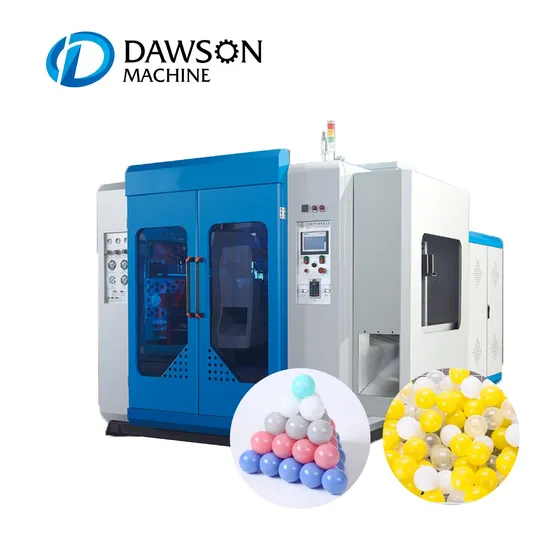

LDPE Plastic Colorful Christmas Decoration Festival Balls Energy Saving Children Ball PE PP Blow Molding Machine

Product Description

Product Description
DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine ABLB65/75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

Machine Model		Max. Bottle size	Production forecast
ABLB65/75	Double Station Double Head	1L	450~480 BPH
	Double Station Single Head	5L	280~320 BPH

Technical Parameters

Name	Units	ABLB65II	ABLB75II
Max.product volume	L	3.5	8
Screw diameter	MM	65	75
Screw drive power	KW	18.5	22
Output of HDPE	KG/H	75	100
Oil pump drive power	KW	7.5	7.5
Clamping force	KN	65	80
Max.size of mold	MM	320×350	400×430
Template size	MM	290×320	380×420
Mold stroke	MM	150-500	170-520
Max.die diameter	MM	170	170
Size of machine	L×W×H	3.9×2.2×2.6	4.2×2.2×2.7
Weight of machine	TON	6.5	7.5

Detail Images

Clamping system
Lastest Euro style toggle type clamping system
Bigger platen size capable of carriage more giant molds.
Stronger clamping force can make the blow molding item bottle joint line finish smoother.
More precision carriage stroke and easier to adjust.
All casting processes ensure a longer life for the clamping system.
Control system

Lastest Taiwan Wisetech control system
Intelligent man-machine system & easy operation
Parison controls 100 points available for parison thickness control
Available self-diagnose function in function pages.
Flexible to upgrade and change the program through USB.
Available to add different languages for better service customers.
Taiwan keyboard & Emergency stop function.
Product and mold parameters are saving available.
Extrusion & Heating
High quality Bimetallic screw specialized for HDPE,PP or PVC PC
The highest quality motor MengMiu from China for extrusion motor.
Pre-heating & temperature protect function available in the system.
Heater is adapting high quality ceramic heating technology.
Energy saving & high efficiency heating, easy to maintenance.
ABB invertor for controlling frequency of screw and reducer.
Available to add hydraulic screen filter system.
Hydraulic System
Hydraulic motor available to upgrade to servo drive Energy saving, low noise & increase working life of hydraulic units.
Latest hydraulic oil design for smooth running of all hydraulic functional parts.
We choose SUMITOMO pump and YUKEN valve as the key hydraulic part to ensure the reliable performance and smooth running of machines.
We use stainless steel oil tank which is to make sure the clean of oil & anti rust.
All our hydraulic units, pumps, pipes valves had a separate mark, which help to identify during future maintenance or changing of spare parts.
Electrical System
All our electrical components are first-class international brands.
Such as Japan Mitsubishi or Taiwan Wisetech, France Schneider, Japan MOOG, ABB from Europe, Omron relay, Italian Gefran Transducer, Taiwan Delta servo drive controller...
All input and output have monitor system in program, easy and convenient to do future services and technical supports.
The quality standard is in accord with CE standard.
Electrical cabinet equipped with cooling fans for temperature control.
Work Shop
Our professional blow molding machine workshop...
High Quality Mould

High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Company Profile
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos


FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai PudongInternational Airport. We canpick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models withquotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technicalsupport or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customersproducts to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train thecustomer's employees.Q: What's DAWSON's advantage?DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also wecan source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will savea lot of cost and time.DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

---
