Aerosun LNG 13cbm Cgj5160zys5ng Compressed Back-Loaded Garbage Compactor Truck

US$70,000.00-85,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Cgj5160zys5ng
Volume
10001-15000L
Emission Standard
Euro 5
Transmission Type
Automatic
Payload
20T
Fuel
Diesel
Models
Large
Usage
Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
Condition
New
Trademark
Aerosun SanLi
Origin
China

Product Description

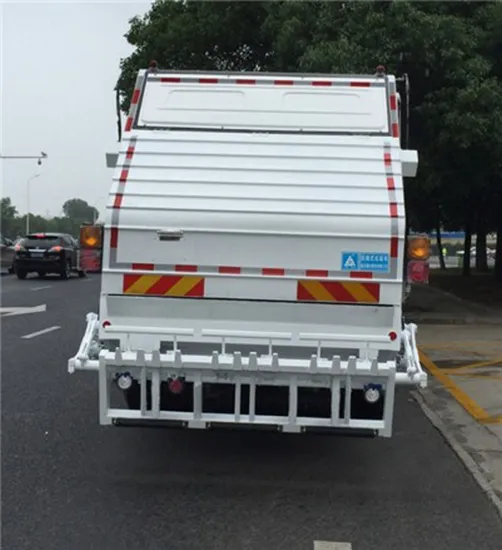

Aerosun 13cbm CGJ5160ZYS5NG natural gas compressed back-loaded garbage compactor truck
The CGJ5160ZYS5NG natural gas compressed back-loaded garbage compactors are specially used for collecting and transporting municipal domestic waste or other compressing waste. The trucks have electric hydraulic control system, crushing and densification mechanism, with high compression ratio and large load capacity. The collection and carriage of waste is hermetic without secondary pollution.
Notice: It is strictly prohibited to collect building garbage and industrial metal garbage.
1.Main Technical Specifications
Product Model CGJ5160ZYS5NG
Overall dimension (L×W×H) (mm) 8950×2500×3110
Gross Mass(kg) 16000
Rated Contained Mass(kg) 4405
Curb Weight (kg) 11400
Approach/Departure Angle 18/15
Chassis Model EQ1160GD5NJ, Dongfeng
Max. Speed(km/h) 90
No./Axle Distance(mm) 2/4500
Axle-load 5600/10200
Engine Model YC6J210N-52(Euro V), Commins
Power(kw) 155
Fuel diesel
Tire size 10.00R20 16PR
Front/Rear Suspension(mm) 1430/1180
Container Rated Volume(m3) 13
Falling time of loading body(s) ≤20
Lifting time of loading body (s) ≤12
Filling cycle(s) ≤22
Time of effuse push-out(s) ≤35
Cylinder capacity (kg) 176.4
Cylinder nominal capacity (L) 450
Continuous driving range (Km) ≥500

2.Advantages and Characteristics
2.1 Beautiful appearance, and the tank body adopts circular arc plate structure and streamlined design, without reinforcing bars.
2.2 The mode of compression adopts bi-directional compression, and the compressed garbage is evenly distributed.
2.3 The mode of operation adopts automatic dual-control operating system, garbage compression has two actions of single action and continuous action.
2.4 The electrical and circuit system of the vehicle adopts programmable PCL computer automatic control mode
2.5 The computer board adopts international famous brand imported from Japan. It has the function of fault alarm and display, which can quickly judge the fault of the vehicle. It also can realize the continuous curve of engine speed, realize the function of automatic acceleration and deceleration of engine, reduce noise and fuel consumption;
2.6 Key electrical components imported from Japan -- control box, inductor, plug-in, cable, switch, etc.
2.7 Equipped with Japanese imported quality brand automatic acceleration and constant speed device for engine.
2.8 The hydraulic components adopt the products with high reliability, among which the hydraulic control valve, the full set of oil cylinder, the full set of high pressure hose, the full set of hydraulic pipeline, the hydraulic oil tank and the connector all are imported from Japan
2.9 Advanced design, simple operation, reliable work for the hydraulic system, it can realize the process of lifting for the loader and discharging garbage by pushing plate through the cab control, also. it can realize to clean up the residual garbage in the loader.
2.10 The joint of the loader and the tank body must be reasonably structured, it adopts the tight sealing technology of hydraulic lock, uses the sealing groove and sealing rubber strip imported from Japan, and have good sealing performance
2.11 The steel plates for making the tank body and the loader are Japanese weathering steel plates with good corrosion resistance.
2.12 The slide track in the loader adopts integrated precision casting guide rail imported from Japan, underground natural aging for 5 years. Skateboard adopts roller mode, and the roller adopts imported brand.
2.13 It can equipped with a garbage container or buckets turnover mechanism.
