New Chain Link Fence Machine for Sale

Product Description

Product Description

Full automatic chain link fence machine includes:main machine,weaving machine mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.The machine is controlled by PLC system,we can set the length of the fence by PLC program.

Machine parameters

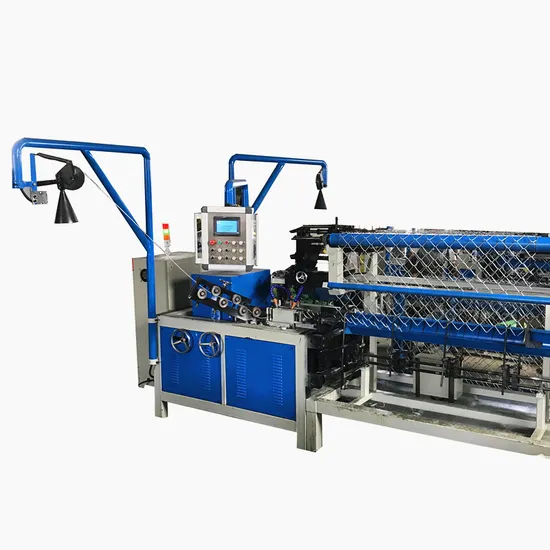

Automatic Double Wire Chain Link Fence Machine
Model	KY-DW-3000
Wire diameter	1.8 mm- 4.0mm
Mesh hole size	25 mm-100mm
Mesh width	500-3000 mm
Mesh side type	Knuckled and twisted(at one machine)
Production speed	80-180 m²/h
Machine weight	3000 KG
Machine Dimension	5500*2500*1700 mm
Raw material	Galvanized wire,PVC coated wire,Low carbon iron wire,etc.
Machine voltage	That we can do 415 v - 240 v, 50 Hz
Drive system type	Servo motor 5.5KW
Control system type	Touch screen control(English)
Adjustment parameters	On the touch screen
Mechanical power	Main motor : 5.5 KW (Servo motor) Twist edge : 0.75 KW x 2 Roll mesh : 2.2KW Adjust mesh width : 0.12 KW

Features

1. Through die, one rods of wire become diamond-shape.
2. Fully automatic (feeding wire, twist/ knuckle sides, winding up rolls)
3. And then diamond-shape wire connects with wire inside the winding shaft.
4. Mesh width and mesh opening can be customized as customers' will. 3M-6M
5. Application: extensively used as fences for playground and gardens, highway, railway, airport, port, etc.
6. Three sets of molds for free to make three different kinds of mesh hole. And the molds can be customized as your request.

Detailed Images

(1)Double wire feeding system
1,Double wire feeding can add speed of machine . This part can remove. It is easy for loading machine.
2,Two wires twist together ,and turn into the finished mesh hole . So the production can be increased to max 180 Square Meter/ Hour.
(2)Mould and Soap device
1,The material of the mould is specially treated, which increases the service life. Each machine will be equipped with three different sizes.
2,Soap water can lubricate machine & wire , which make working smoothly. The device can make soap water recycling.
(3)Mesh width adjustment
The machine increases the motor for adjusting the width of wire mesh and saves labor.
(4)Mesh Compacting system
1,The finished wire mesh can be making into mesh rolls or compacted into bundles.
2,The mesh rolling machine and mesh Compacting machine, you can choose one of them.
(5)Control system
The operating platform on the machine can be adjusted within a certain range, which is convenient for operation. The screen displays Chinese and English or more languages.

Our service

Pre-sales Service
1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer.
After-sales Service
1.Maintenance period: one year If the buyers need, we can send our technical staff to the buyers' place to debug the machine and providing the training in 20 days after the machines arrive at the destination port.
2.The debugging fees: free
3.The training fees: free
4.The numbers of technical persons: most often one technical person per set machine
5.The fees ,such as round-trip tickets, accomodation etc, are all in buyers' account.
6.After the maintenance period: If you need the machine parts,we will provide it as our cost.

Company Profile

Hebei Kaiye Machinery Equipment Co., Ltd.
1. We are professional wire mesh machine manufacturer with almost 20 decades experiences in China.We have senior engineers,senior technicians,more than 100 employees and we own many national patent. Our products got ISO9001:2009&CE certificate.
2. We are located in Anping,the wire mesh capital in China, with huge wire mesh industry support. All of our machines comply with international quality standards and customers' needs, and are greatly appreciated in a variety of markets all over the world.
3. Hebei Kaiye Machinery Equipment Co., Ltd.is a professional manufacturer and exporter integrating the design, development and production of wire mesh machines, poultry cage welding machine, construction mesh welding machine, fence mesh welding machine, reinforcing mesh welding machine and so on and related accessories.

Why Choose Us?

Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan,Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
The summary is as follows:
1. Rich Domain Experience.
2. Professional Engineers.
3. More than 120 Workers.
4. With the occupying area of 6800 square meters.
5. Wide Business Network.
6. High Quality and Good After-sale Service.
7. Near Tianjin Port

FAQ

The Warranty
1. With one year guarantee and the good after-sale service.
2. Engineers can go to your company for the installation.
3. As per your special requirement, we can discuss it.
Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L.
2. L/C is also acceptable.
3. As per your special requirement, we can discuss it.
Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in wire mesh field more than 20 years.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

Machine we can supply

Reinforcing mesh welding machine
Fence mesh welding machine
Automatic welded mesh machine
Construction mesh welding machine
3D wall panel welding machine
Wire drawing machine
Gabion mesh machine
Hexagonal wire mesh machine
Chain link fence machine
Wire straightening and cutting machine
and so on.
We can produce machinery according to your requirements.
If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact with us.

---
