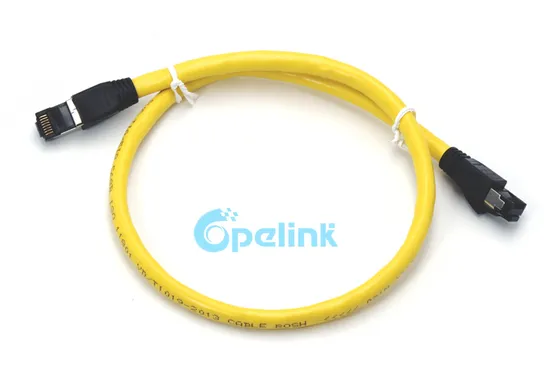

CAT6A FTP Patch Cord, High Speed CAT6A FTP Network Patch Cable

Product Description

CAT6A FTP patch cord, High Speed Cat6a ftp Network Patch CableThe Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
Product Details

Cable Type	Cat6a FTP	Shielding Type	Shielded (FTP)
Cable Jacket	LSZH/PVC	Length	Customization
Data Rate Support	10GBase-T	Maximum (Tested) Frequency	550MHz
Conductor Type	Pure Bare Copper	Connectors	RJ45 (Male)
Max Transmission Distance	100m	Wire Scheme	T568B, Straight
Operating Temperature	-20 to +75°C (-4 to 167°F)	Installation Temperature	-10 to +50°C (14 to 122°F)

Product Features .Exceed ANSI/TIA-568-D.2 Category 6A and ISO 11801 Class E Standards .Up to 550MHz with 10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) .FTP Cable Minimizes EMI and RFI Interference .Performance Tested with Fluke and Wired T568B .Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes .Use in Patch Panel or Equipment Connections in Enterprise Networks and Data Center .Support Current and Future Category 6a/6/5e/5 Applications

---
