Fa206b Carding Machine Tongda Group Textile Machinery Manufactured

Product Description

Product display and advantages
Main Feature :

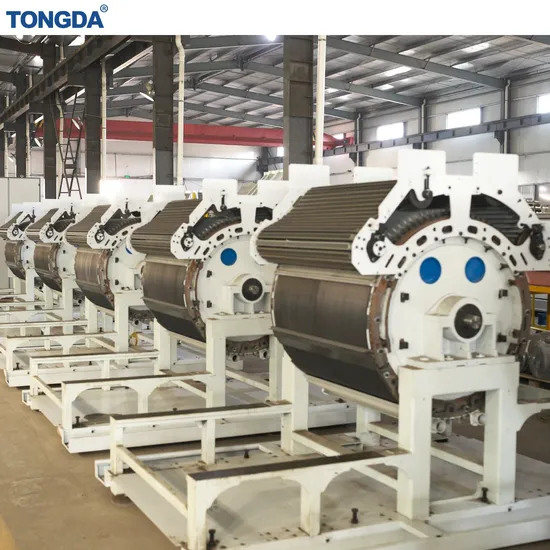

The cotton carding machine FA206B is the accurate and perfect cast iron entity cylinder and made with German resin sand technology. It is featured by netter stability without deformation to ensure precise gauge of various flats when spinning different yarn type.Rotary Flat is support by four points that is made by wear resistant material to ensure minimum flat tip height difference and extend duration.Front.rear stationery flats and web cleaner are made by aluminum alloy, good tip neatness and convenient gage adjustment to ensure fiber carding more fully and fine.
Product Details
FA206B Carding machine is the accurate and perfect cast iron entity cylinder is made with German resin sand technology. It is featured by netter stability without deformation to ensure precise gauge of various flats when spinning different yarn type.Rotary Flat is support by four points that is made by wear resistant material to ensure minimum flat tip height difference and extend duration.Front.rear stationery flats and web cleaner are made by aluminum alloy, good tip neatness and convenient gage adjustment to ensure fiber carding more fully and fine.
Web cleaner, stationer flat, cover sheet are designed in modular which can be grouped and fitted according to different material and flexible dismantled with better trash excluding efficiency.Singular licker-in is mounte. It is designed with note knife, pre-carding segment, around licker- in to efficiently exclude trash and short staple. Mote knife and dust dropping zone length can be used for adjusting noil quantity to reduce fiber loss.
The Working Status and Running Efficiency. Safety Protections and Self-Diagnosis System. Sophisticated Suction System Provide Better Opening and Cleaning. Independent Transmission Motors Adjusted by Inverts For High Efficiency. User Friendly Graphical Interface. Easy Access to control Parameters. Smart Mechanical Design Makes maintenance An Easy Take.
Main technical parameters

Application	This machine is used for processing cotton and chemical fibres or blends in length 22~76mm,lt is specially used for openend spinning
Production(kg/h)	6 5
Delivery speed (m/min)	320
Sliver count (g/m)	3.5~6.5
Feed weight (g/m)	300-1000
Working width (mm)	1000/1250
Total draft	60-300
Feed roller diameter(mm)	100
Licker-in speed	0)180,0180,0)250
Doffer diameter(mm)	706
Doffer speed(r/min)	4^65
Cylinder diameter(mm)	CD 1288
Cylinder speed( r/min)	340-510
No. of revolving flats(working/total)	30/84
Flat speed(mm/min)	98-370
Auxiliary carding segment	4 licker-in Carding segments,4 front stationary flats(Cotton),4~6(Chemical fiber); 6 rear stationery flats(Cotton),6-10(Chemical fiber)
Web cleaner	Rear web deaner(2),Front web cleaner(1)(Cotton)
Diameter	60,001,000
Can size(mm)
Height	11,001,200
Continuous suction(m3/h)	Air volume 4000
Air pressure(Pa)	-920
Compressed air requirement(kg/cm2)	Pressure 5~7
Compressed air consumed(m3/h)	0.02
Total installed power(kw)	11,24
Safety cover form	Totally-enclosed structure
Space requirement(Lx W)(mm)	4007 x 1980 (Coiler no included)
Approx net weight) kg)	7500
Option	USTER UQAaotoleveller

Parameter Comparison

FA206B	FA1213A
Sliver count(g/m)
3.5~6.5	3-7
Feed weight (g/m)
300-1000	400-1000
Working width(mm)
1000/1250	1000
Total draft
60-300	60~300

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
