US$138,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Separation Mode
Filter Type
Operating Type
Continuous Type
Centrifuge Type
Disc Centrifuge
Distillation Equipment Type
Steam Distillation Equipment
Extraction Tower Type
Vibration Plate Tower
Color
Blue, Green, Orange, Yellow, Customizable
Machine Weight (Empty)
1250kg
Overall Dimensions
1400*1200*1420mm
Treatment Capacity
1~2 Ton Per Hour
Transport Package
Wooden Export Package
Specification
depend on model
Product Description
In the chemical industry, separation is an indispensable process where mixtures are divided into individual components. This procedure is paramount for producing numerous pharmaceuticals and chemicals. With a variety of methods available for separating mixtures, the optimal choice depends on the material's specific properties. Among these, centrifugation stands out as the most prevalent and effective method.

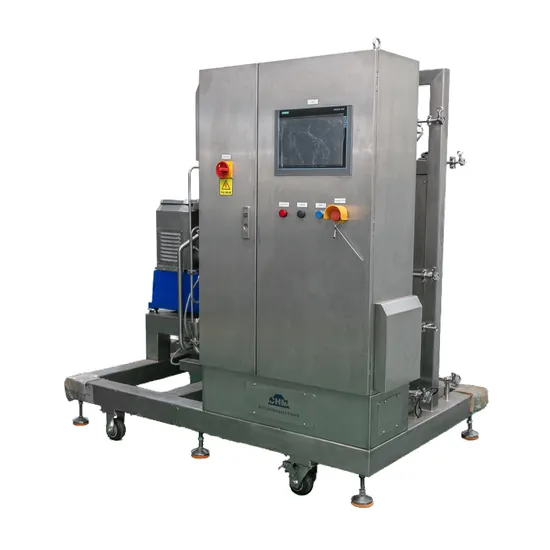

The DFB(H)Y series separator is engineered to purify and clarify chemical raw materials, effectively removing impurities from the extract. This process enhances the extract's clarity, ensuring high purity and exceptional quality of the products. Customers benefit from safe, reliable, and intelligent operation, which is straightforward and cost-effective.
| Application | Model | Treatment Capacity | Motor Power | Inlet Pressure | Outlet Pressure | Weight | Overall Dimensions |
| (L/H) | (KW) | (MPa) | (MPa) | (KG) | (mm) |
| Animal Fat/Plant Oil | DQRE260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 280 | 620*500*1100 |
| DQBE260 | 1000-2000 | 3 | 0.05-0.1 | ≤0.4 | 280 | 620*510*1200 |
| DFBE350 | 1200-2500 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 |
| DFHE450 | 3000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1450 | 1850*1550*1800 |
| DFHE610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2180 | 1980*1610*1950 |
| Food/Beverage/Dairy | DQRP260 | 200-500 | 2.2 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DQHN260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DQBP350 | 1200-2000 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 |
| DQBN380 | 2000-3500 | 7.5 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 |
| DQBN410 | 2000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 |
| DQHP510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 |
| DFHP610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 |
| Biological Fermentation | DFBS260 | 200-500 | 2.2 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DFBS260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 280 | 620*510*1400 |
| DFBS350 | 1200-2500 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 |
| DFBS410 | 2000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1250 | 1600*1200*1500 |
| DFBS510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 |
| DFBS610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 |
| Industrial Waste Liquid | DFBY200 | 200-1000 | 0.37 | 0.05-0.1 | ≤0.3 | 80 | 500*600*1200 |
| DFBY260 | 700-1500 | 3 | 0.05-0.1 | ≤0.3 | 260 | 620*510*1400 |
| DFBY260 | 1000-2000 | 3 | 0.05-0.1 | ≤0.4 | 280 | 620*510*1200 |
| DFBY350 | 2000-3000 | 5.5 | 0.05-0.1 | ≤0.4 | 450 | 620*510*1200 |
| DFBY410 | 3000-4000 | 11 | 0.05-0.1 | ≤0.4 | 1600 | 1850*1550*1800 |
Chemical Liquid
Coal Tar
Marine/Mineral Oil | DFBY510 | 3000-5000 | 15 | 0.05-0.1 | ≤0.4 | 1670 | 1850*1550*1800 |
| DFHY610 | 6000-10000 | 22 | 0.05-0.1 | ≤0.4 | 2100 | 1980*1610*1950 |
>>
