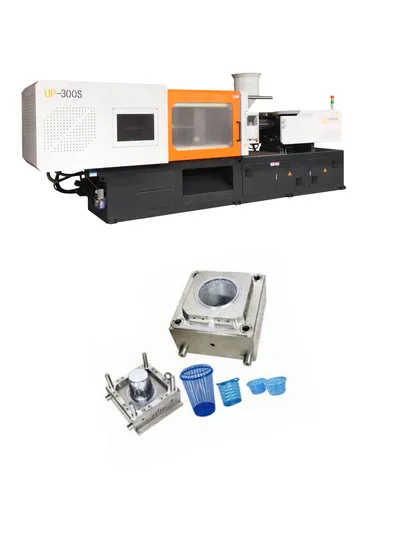

High Efficiency 16kw Household Plastic Fitting Injection Machine

Product Description

Ningbo Union Power Machinery Co., Ltd.
Located near Shanghai in Ningbo, our factory specializes in manufacturing injection molding machines, molds, and auxiliary equipment. Our injection molding machines range from 50 to 3000 tons with a tensile resistance of up to 40000 g. Our machine family includes:
A) Standard Injection Molding Machine
B) PVC Injection Molding Machine
C) PET Injection Molding Machine
D) Two-Color Ejector
E) Fully Hydraulic Injection Molding
F) All-Electric Injection Molding Machine
G) China Servo Injection Molding Machine
Key Parameters:
A. Modulus of Capacitance: Guide pillar specifications including position, size, and allowable modulus.
B. Nozzle Parameters: Nozzle details such as spherical diameter, aperture, and extension length.
C. Mold Parameters: Mold hole and slot size for code molds.
D. Ejection Mechanism: Ejection point position, ejector rod diameter, force, and stroke.
E. Mold Opening: Opening stroke and maximum distance.
Experience precision and efficiency with our high-quality injection molding solutions. Trust Ningbo Union Power Machinery Co., Ltd. for all your injection molding needs.

Technical Parameters	Model UP-300T
Injection Unit	A	B	C
Screw diameter (mm)	60	65	70
Shot Volume (cm3)	806	946	1096
Injection weight (g)	725	851	987
injection pressure (Mpa)	170	145	107
Screw speed (rmp)	220
Clamping Unit
Clamping force (KN)	3000
Open stroke (mm)	600
Max Mold height (mm)	620
Min Mold height (mm)	200
Space between tie bars(mm)	620*620
Ejector force (KN)	70
Ejector stroke (mm)	150
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	30(29)
Heating power (KW)	18.5
Machine dimension (M)	6.3*1.75*2.37
Machine weight (T)	9.3
Oiltank cubage (L)	400

---
