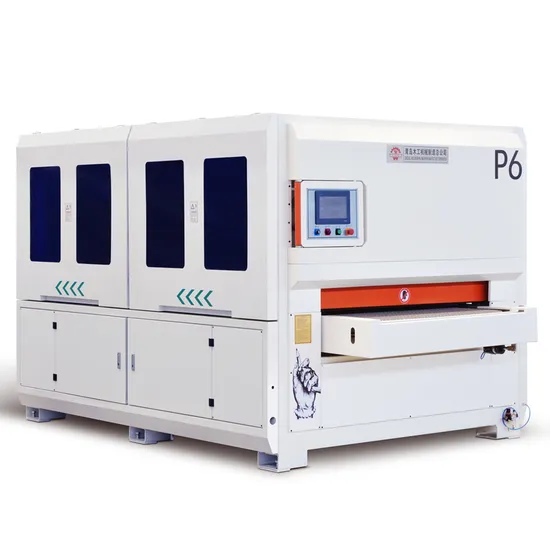

Woodworking Machinery CNC Heavy Duty Solid Wood Panel MDF Oscillating Curve Sander Brush Sanding Machine

US$15,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
QSG1000P6
Automatic Grade
Automatic
Variable Speed
Variable Speed
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Iron Grey
After-sales Service
1 Year
Model
Qsg1000p6 Brush Sanding Machine
Working Width
1000mm Brush Sanding Machine
Working Thickness
2-100mm Brush Sanding Machine
Feed Speed
5-25m/Min Brush Sanding Machine
Quantity of Sanding Roller
Brush Sanding Machine
Quantity of Sanding Disc
8 (in Two Rows) Brush Sanding Machine
Total Motor Power
11.21kw Brush Sanding Machine
Overall Dimensions
4000*2000*2200mm Brush Sanding Machine
Transport Package
Standard Export Packing
Specification
ISO9001
Trademark
HOLZH
Origin
Qingdao
HS Code
84659300
Production Capacity
50sets/Month

Product Description


Model QSG630P6 QSG1000P6 QSG1300P6
Working Width 20-630mm 20-1000mm 20-1300mm
Working Thickness 5-120mm 5-120mm 5-120mm
Min working length 400mm 400mm 400mm
Brush disc speed 0-400r/min 0-400r/min 0-400r/min
Brush disc amount 7 7 9
Cross brush speed 0-400r/min 0-400r/min 0-400r/min
Cross brush amount 6 6 8
Brush roller speed 0-400r/min 0-400r/min 0-400r/min
Brush roller amount 2 2 2
Oscillating speed 30times/min 30times/min 30times/min
Feeding speed 0-18m/min 0-18m/min 0-18m/min
Working table height 900mm 900mm 900mm
Brush disc diameter φ180mm*20 φ180mm*20 φ180mm*20
Cross brush diameter φ300mm*35 φ300mm*35 φ350mm*35
Brush roller diameter φ300mm*50 φ300mm*50 φ300mm*50
Brush disc power 1.5kw 1.5kw 0.75kw*2
Cross brush board 1.5kw 1.5kw 1.5kw
Brush roller power 1.5kw*2 1.5kw*2 1.5kw*2
Feeding power 2.2kw 2.2kw 2.2kw
Top body Lifting power 0.75kw 0.75kw 0.75kw
Each unit Lifting power 0.37kw*4 0.37kw*4 0.37kw*4
Oscillating power 0.37kw*4 0.37kw*4 0.37kw*4
Working air pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa
Volume of dust collector 8200m3/h 10000m3/h 12000m3/h
Dust outlet diameter φ120mm*6 φ120mm*6 φ150mm*6
Dimension 4000*1700*2200mm 4000*2000*2200mm 4000*2300*2200mm
Weight 2T 3T 4.5T

Functions:
1) 2 rows oscillating brush disc,2 rows of oscillating cross roller, 2 brush rollers. All roller are frequency speed control.Each unit can be a separate swing, to eliminate the grinding wheel in the grinding process generated traces of the plate surface smoother.
2) Electric lifting system: height of each unit is electrically controlled due to different processing requirement
3) Guide system: each unit can be pushed out and pull in, change of sandpaper strips is more simple
4) Separate dust removal system: each unit had separate dust removal system which greatly improve the production environment
5)Working tale is fixed, the top machine body can float up and down according to work piece thickness, suitable for sanding production line
