CNC H Beam Drilling Machine for Steel Frame Construction Structure

Product Description

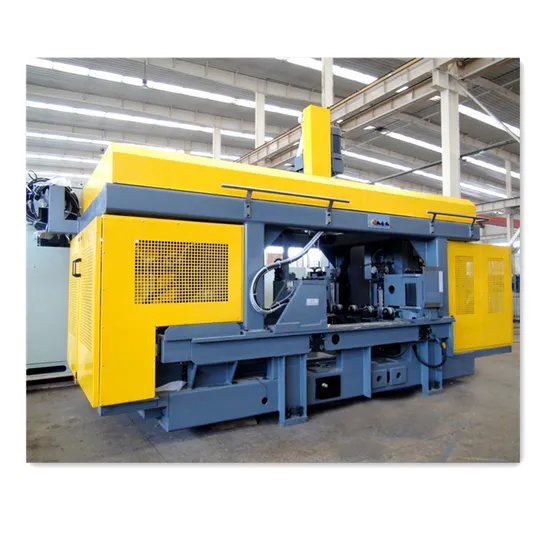

CNC H Beam Drilling Machine for Steel Frame Construction Structure
Product Description
TECHNICAL PARAMETER

Model			SWZ1000	SWZ1250
Workpiece Size	H- beam (web plate height x flange width)	Max.	1000 x 500	1250 x 600
		Min.	150 x 75
	Length(mm)		≥2000
	Max. Thickness(mm)		80
	Drilling Diameter	Vertical Drilling	Ø12-Ø33.5
		Horizontal Drilling	Ø12-Ø26.5
Spindle Units	Qty. Of Spindle		One spindle on each side( top, left,right) Total 3 spindles
	Rotation Speed (rpm)		120-560
	Spindle Motor Power (kw)		3 x 4kw
	Max. Feeding Stroke(mm)		Left & Right 140	Vertical:325
	Feeding Speed(mm/min)		20-300
	Movement of left/right spindle(mm)		In the direction of workpiece length:520
			Above the vertical base-level:30-470	Above the vertical base-level:30-570
	Movement of top spindle(mm)		In the direction of workpiece length:520
			Beyond horizontal base-level:45-910	Beyond horizontal base-level:45-1160
Marking	Character Qty.		36
	Character Size		Ø10
Overall Dimension(L x W x H) mm			Aprox.4550 x 3050x 3520	Aprox.4800 x 3050 x3520
Total Power(KW)			34kw
Machine Weight(Kg)			7000Kg	8000Kg

WORKPEICE SHOW

FEATURE
1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2. No need to set thickness of work piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.
3. Frame made of sturdy electro-welded and normalized Plates and Square Beams. The structure with roller guides on which the sliders supporting the three spindles guarantees the total moving stability, and ensures the working precision;
4. This machine can read AUTOCAD drawings and lofting software files automatically, such as DXF, NC1.
5. Equipped with automatic lubrication system and air conditioner for electric cabinet.
6. Equipped with automatic feeding systems, which will clamp and feed material into machine automatically.
7. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.
8. Drilling units equip with famous brand spindle motor.
9. The key mechanical, hydraulic and electric parts are all famous brands.

Application
The SWZ1000C three-dimensional CNC drilling machine production line is composed of SWZ1000C three-dimensional CNC drilling machine, feeding trolley and material channel. It can be widely used in steel structure industries such as construction, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, tower masts, etc.
Detailed Photos
Packaging & Shipping
Our Advantages
Professional Technical Team: We own a professional technical team who devote to the advanced design on the machines and better performance with plenty experience more than 15 years.Various Patents: we have been got many patents on various models of our products these years and keep on developing new products.
High Products Quality:We have been gained a lot of good reputation among our customers and never got any quality complaint until now Professional Experienced Sales Team:Our sales team have average 10 years ' experience in export process, they are qualified to provide the most reasonable proposal for you and resolve your problems on machines selection and usage immediately once you ask.


FAQ
1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim. 2. How l believe you?
A: Welcome to visit us to check our plant and ability, the payment method can be chosen and the third party inspection through ****** is available. 3. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service 4. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time. 5. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time 6. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us

Our Service
1. OEM DESIGN AND PRODUCTION:
Our active engineer and design team can make the special machine according to your special requirement. 2. DELIVERY IN TIME ASSURANCE:
We assure the machines you ordered will be delivered at promised time 3. YOUR PAYMENT PROTECTION:
You can pay through ****** to protect your advance payment 4. FREE INSTALLATION AND TRAINING:
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training, installation operation video provided.

---
