Lanying wire weaving machine

Product Details

Product Description

Product Description
lanyingmachine

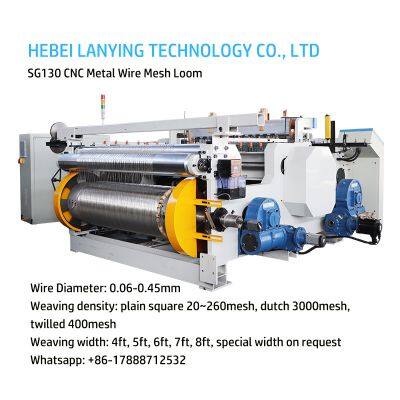

Lanying machine - a professional manufacturer of wire mesh machine
We produce all kinds of cnc wire mesh machines that widely used in wire cloth weaving, it could weave carbon steel mesh, stainless steel mesh, nickel wire mesh, silver wiremesh, titanium mesh, alloy mesh, platinum mesh, etc in plain, twill, dutch, reverse dutch twill, satin five heddle mesh, 3 heddle mesh, special pattern, etc..
We only make high quality wire mesh machines, if any inquiry, welcome to contact our sales: Miss Bonnie Chen bonnie@wiremeshloom.com phone/whatsapp: +86-17888712532

Product Series	SG100 Series	SG130 Series	SG160 Series	SG180 Series
Standard weaving width (Special width on request)	1300mm 1600mm 2000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm	1300mm 1600mm 2000mm 2500mm 3000mm 4000mm
Wire diameter range	0.016-0.3mm	0.06-0.45mm	0.1-0.7mm	0.2-2.1mm
Plain weave square hole (mesh/inch)	40-400	20-260	10-100	6-60
Twill weave (mesh/inch)	≤600	≤400	≤350	≤260
Wire material	Stainless steel, iron, copper, aluminum, platinum, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum, alloy, nickel, polyester	Stainless steel, iron, copper, aluminum, platinum,alloy, nickel, polyester	Stainless steel, iron,copper, aluminum, alloy, nickel, polyester
Speed (the actual speed depends on the weaving width and specs)	100 rpm （max 120rpm）	100 rpm （max120rpm）	50-70 rpm	35-50 rpm
Basic tension	15000 N/m	20000 N/m	40000 N/m	60000 N/m

---
