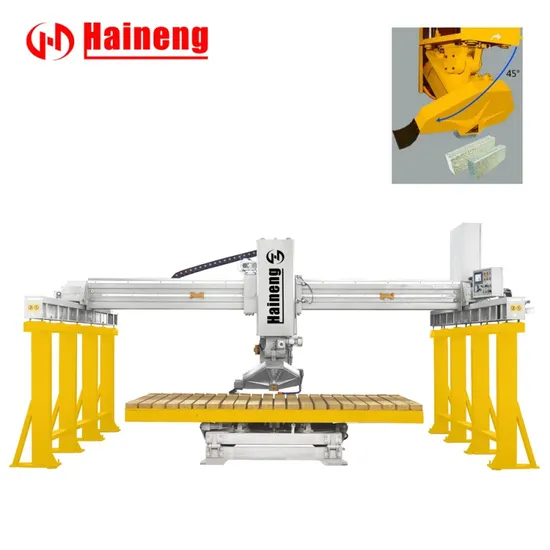

Multifunction Laser Stone Bridge Saw Infrared Marble Cutter Granite Bridge Cutting Machine

Product Description

Multifunction Laser Stone Bridge Saw Infrared Marble Cutter Granite Bridge Cutting Machine
Product Description
Infrared Stone Bridge Saw machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees per 45 degrees. It can be jumped and positioned with any angular position and brake. Granite Marble Bridge Saw can cut rectangular, octagonal, circular, round, and small and medium angles shape.Can choose profiling function.

Product Parameters

Blade diameter	mm	φ350-φ600
Max.working dimensions(LxWxH)	mm	3200*2000*180
Workbench dimensions (LxW)	mm	3200x2000
Workbench tilting degree	n°	85°- 0°
Head rotating degree	n°	0°- 90°
Main motor power	kw	18.5
Water consumption	m3/h	3.5
Machine weight	kg	5500
Trolley dimension	mm	6000x3500x2600

Processing
Supplier's popular products
5 Axis CNC Bridge Saw
This machine can realize multiple advanced functions such as straight cutting, arc chamfering, drilling, milling, 3D profiling, edge shaping, etc. view more here


Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.

---
