Animal Feed Farm Tractor Mounted Corn Straw Crusher Corn Silage Harvester

Product Description

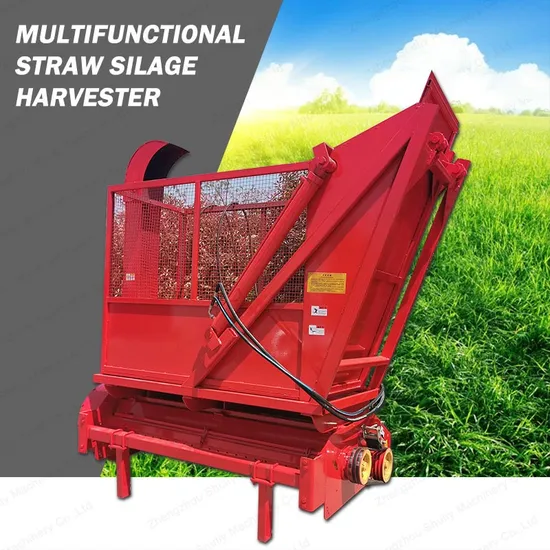

tractor mounted corn silage forage harvester machine

Introduction of forage silage harvester
This silage harvester and recycling machine is mainly used to cut silage and then crush them into small pieces by rotating blades. These small pieces are lifted to upload to the container. We have two types of silage harvesters according to whether the machines are equipped with a recycling container. The machine needs to match with a tractor. The harvesting width is 1.35-2m.
We have many models of corn maize silage harvester machines for you to choose from.
Each one has different harvesting ranges. The tractor horsepower for different
harvesting widths is different. please contact us to know more.
Work Process of straw corn maize silage harvester
1. Firstly the operator connects the corn maize silage harvester machine with a tractor.
2. Rotating blades constantly cut the straw when it begins to work.
3. The straw goes into the crushing part.
4. Then the fan blows the small pieces into the lifter.
5. Lifter conveys the small pieces into the container.
6. Finally, the hydraulic device on the tractor powers machine to unload the crushed straw.
Technical parameters of multifunctional forage silage harvester

Model	4JQH-135	4JQH-150	4JQH-165	4JQH-170	4JQH-180	4JQH-200
Size(m)	1.5*1.81*3.35	1.48*1.98*3.5	1.48*2.13*3.5	1.48*2.18*3.5	1.48*2.28*3.5	1.68*2.46*3.36
Weight(kg)	640	700	790	820	980	800
Capacity(hm²/h)	0.25-0.48	0.3-0.5	0.32-0.55	0.35-0.58	0.36-0.6	0.36-0.72
Harvesting width(m)	1.35	1.5	1.65	1.7	1.8	2
blade Quantity	32	40	44	44	48	52
Power(kw)	29.4-44.1	40-51	40-59	45-62	48-66	66.2-88.2
Recycling rate	≥80%
Fling distance(m)	3- 5
Fling height(m)	≥2
crushed straw length(mm)	≤80
Stubble height(mm)	≤150
ground clearance(mm)	≥320
Cutter shaft speed(r/min)	2160
Working speed(km/h)	2-4

Application of straw silage harvester
1. Grain stalk such as corn straw, sorghum straw, and other grasses all can be the raw materials.
2. The harvested and crushed crop stalks can be directly used in farms to feed animals, feed mills to process into feed pellets. The finished products can also be used in the production of charcoal, straw coal, and other biomass power generation fuels. It can also be used as the cultivation substrate of edible fungi farmers and other industries of product processing.

The successful case of silage harvester machine
This year, our customers from Pakistan and Ecuador had ordered 10 sets of straw cutter machines with great satisfaction. He asked us for many details such as cutting width, tractor, recycling rate, etc. We aim to solve every problem our customer has and provide the best service. Influenced by patience and professional skills, he introduced our machine to his friends after receiving the machine.
Zhengzhou Shuliy machinery Co., Ltd. We not only provides customers with good quality and cost-effective products, but also provides first-class service support and solutions. Our agricultural machinery have always been very popular in Africa, South East Asia, and the North American market and have won wide praise from customers. Perfect after-sales service system allows you to worry-free.

---
