Cobb absorption tester

Product Details

Product Description

Product Description

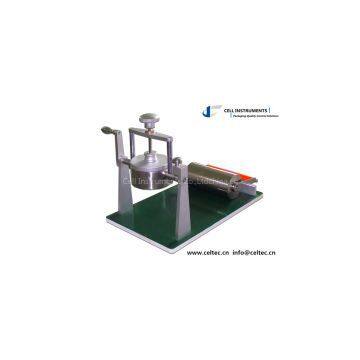

Cobb absorption tester is for the measurement of surface water absorption of paper and paperboard. Loose paper, e.g. newsprint, unsized paper, e.g. blotter and other high absorbability paper is not for this tester.
Cobb absorption tester principle
The Cobb value of surface water absorption of paper and paperboard.:
The calculated mass of water absorbed in a specified time by a unit area of paperor board under specified pressure and temperature conditions. It is expressed in g/m2.
C=（G2-G1）×100。
C-waterab sorptiveness
G2-wet mass,in grams, of the test piece
G1-dry mass,in grams, of the test piece
When Cobb value is less than 200～250 g/m2 for single layer, more layers canused.
Cobb absorption tester technical data
Metal roller sectional area: 100±0.2cm2
Metal roller diameter: 112.8±0.2mm
Roll height：50mm
Blotting paper: 200～250g/m2
Absorption speed: 75mm/10min
Smooth metal roller: length 200±0.5mm，mass10±0.5kg。
Waterv olume: 100mm±5ml。
Standard
ISO 535，GB/T 1540，QB/T 1668
Configuration
mainframe，metal roller，Cobb absorption sampler

---
