Lxh-E3 Volumetric Rotary Piston Cold Water Meter

Product Description

LXH-E3 Volumetric Rotary Piston Water Meter

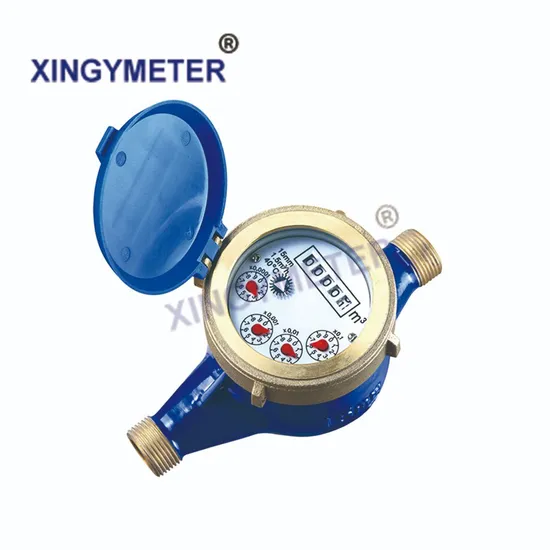

Product Images
Product Description
INDICATION
Cubic meter(m³) and U.S gallon (USG) for selecting.
WORKING CONDITIONS
WATER TEMPERATURE
≤40ºC for cold water meter
≤90ºC for hot water meter
REED SWITCH OPTION
1 liter 1pulse
10 liters 1pulse
Dimensions and Weights\

Nominal diameter	DN	15	20	25
Body thread	D	G3/4B	G1B	G1/4B
Connector thread	d	R1/2	R3/4	R1
Body thread mm	L	165/170/190	190	260
Overall length mm	L1	259/264/284	294	365
Width mm	W	95	100	110
Meter height mm	H	115	121	143
Working height mm	H1	198	204	231
Weight without connectors Kg		1.45(L=165)	1.8
Weight with connectors Kg		1.63(L=165)	2.08

"L1"is the total length when coupling gaskets without compression.
Related Products
LXSC-D1 LXUR-H1 LXH-S
LXSC-D3 LXS-F8 LXSC-D7 Why Us
FAQ
Q1: Why choose Xingyuan Meter?
A1: We are a professional manufacturer of water meters, heat meters and meters accessories.
A2: We have advanced equipment, complete production lines, professional inspectors, and strict quality control.
A3: We offer the most competitive price and satisfying service.
A4: High level quality and delivery time guaranteed.
Q2: Do you provide samples? Is it free or extra?
A: Yes, the customers have to pay the sample cost and the courier cost.
Q3: How about your delivery time?
A: Generally, 30-45 days.

---
