Steel Cutting Lathe

Product Description

Product Description

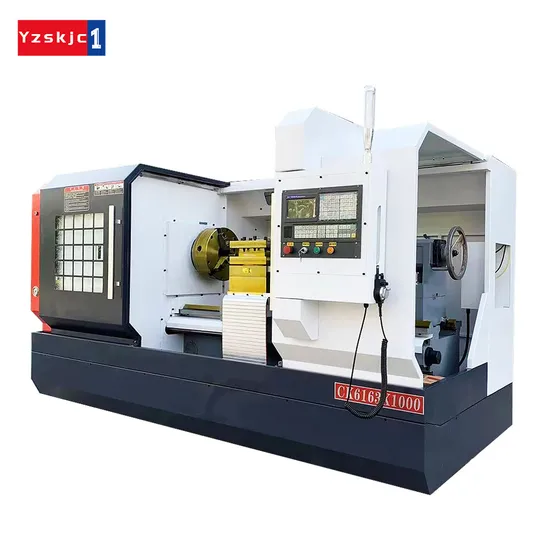

CK6163 CNC LATHE
Product Parameters

Main technical parameters :

Name	Unit	CK6163
Maximum swing diameter over bed	mm	Φ630
Maximum swing diameter over carriage	mm	Φ350
Maximum processing length	mm	1000/1500/2000/3000
Spindle transmission form		Fourth gear
Spindle speed series		Stepless
Spindle speed	r/min
Spindle head form		C11
Spindle hole front end taper		Metric 120 1:20
Spindle through hole diameter	mm	105
Main motor power	kw	11
X/Z axis positioning accuracy	mm	0.025/0.03
X/Z axis repeat positioning accuracy	mm	0.01/0.015
Workpiece processing accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
X rapid traverse speed	mm/min	4000
Z rapid traverse speed	mm/min	6000
Tailstock cover simple diameter	mm	100
Convergence of inner hole of tailstock sleeve		MT6#
Tailstock cover simple movement amount	mm	250
Tool holder form		Electric 4-station
Maximum stroke of tool holder X/Z	mm	32x32
Machine tool dimensions	mm	3400/3900/4400/5400x1820x1780
Machine weight	kg	3200/3600/4000/4500

Main features and function requirements:
This series of machine tools is a mature product of the company, featuring a compact overall structure, pleasing appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
The optimized design of the headstock box is suitable for turning operations on disc and shaft-type components. It allows for machining operations such as linear turning, arc turning, metric and imperial thread cutting, and multi-thread cutting. This design is capable of handling the turning of complex-shaped and high-precision disc and shaft components.
The machine tool features hard guideways for both the machine guide rails and the sliding saddle guide rails, utilizing special materials. These hard guideways undergo high-frequency quenching, resulting in exceptional hardness and wear resistance. This ensures prolonged durability and excellent precision retention for machining operations.
The controller system adopts GSK980TC3 and the machine utilizes domestically produced high-quality ball screws and high-precision screw rod bearings.
The machine tool incorporates high-precision spindle bearing assemblies that undergo precise assembly and dynamic balance testing. This ensures the spindle with high accuracy, low noise, and strong rigidity.
Each lubrication point is equipped with a forced automatic lubrication system for precise and quantified lubrication of the screw rods and guide rails. In case of abnormal conditions or insufficient oil levels, the system automatically generates a warning signal.
The standard configuration includes a domestically produced three-jaw self-centering manual chuck.
The guide rails are equipped with a chip scraping device to prevent corrosion from iron chips and coolant, facilitating easy cleaning of iron chips.
Packaging & Shipping

Packing and loading :
Our customers :
Our Advantages

Our advantages :
R&D
Jiangsu Yizhong Industrial Design institute is the branch of Jiangsu Yizhong Machine tool
Co.,Ltd has 6 professors ,4 doctoral students ,12 masters ,16 senior engineers ,42
intermediate engineers .Now together with Shanghai's Jiaotong university set up the
SJTU-Yangzhou Industrial Design institute .Now they work together for our national 973# and
863#10000-ton Hydraulic machine robot project.
The company has strong ability for OEM machine tools .
Corporation principle
Tech-based,Service-based ,Self-creation and Joint-cooperation.
Build long time and stable cooperation .
Realize mutual benefit .
OEM supply is powerful.
We have agents in Russia , but we want more agents all over the world , pls consult us freely
and we want to help more friend.
Company Profile

Our company :
Our company is a national leading high-tech enterprise, an innovative enterprise in Jiangsu Province. And have powerful advantages for the OEM machines .
Especially for the Edge planer/edge banding machine. It has obtained the National Torch Program Project Certificate (Project No.: 2011GH040591), the National Key New Product Certificate (Project No.: 2010GR10042), Jiangsu High-tech Products (Certificate No.: 081088G0104N), the Test Report of Shanghai Testing Center, and the National Scientific and Technological Achievements Transformation Fund. And also obtained the national "one the Edge planer/edge banding machine software copyright" certificate, four invention patents and six utility model patents. At present, our company's the Edge planer/edge banding machine has a market share of 80% in China.
Jiangsu Yichong CNC Machine Tool Co., Ltd
Address: Yangzhou Jiangdu High-tech Industrial Park North Park Zip code: 225267
FAQ

FAQ:
What equipment can you get from our factory ?
Lathe machine
CNC Vertical machine center
Leveling machine
Plate edge milling machine
Boring milling machine
Edge planer
Gantry drilling and milling machine
Oil pressure
Rolling machine
We support customized machines , welcome your asking .
Why choose Jiangsu Yizhong Machine Tool Co.,Ltd
Quality guarantee :
We have our own factory 498700m2 and we have mature manufacturing experiences since 2006 .
Before machine sending , we will be debugging a long time and confirm it could run well .
We have a rigorous QA and QC procedures and confirm each process following the orders' standard strictly . welcome our customer-self coming to check the machine tools quality .
Delivery time :
Usually our delivery time from 10 working days to 6 months . according to the machines you want to buy .some machines have machine bed in stock .
When we quote you , we will write the machine tool delivery time , and we will abide it carefully .
Advanced technician team :
We recognize that technical innovation is very important for a manufacturer , so our factory set up the Jiangsu Yizhong Industrial design and reach institute years ago ,which makes our factory powerful in customized machines .
If some technical questions our sales person can not answer , they will ask them and they can give a quick response .
By the way , our engineers are available to customers' local factories to assist them to do installation , operation guide and machine tool upkeep .
Sales team :
Our salesmen all are trained before they serve to our customers in factory , so most questions about the machine tools , they can give fast response ,which will save our customers' time .
Our salesmen all love their jobs , so they have passions when working . if you have any technical questions could ask them better before 12pm ,China time .

---
