Jingwei High Quality Carding Machine

Product Description

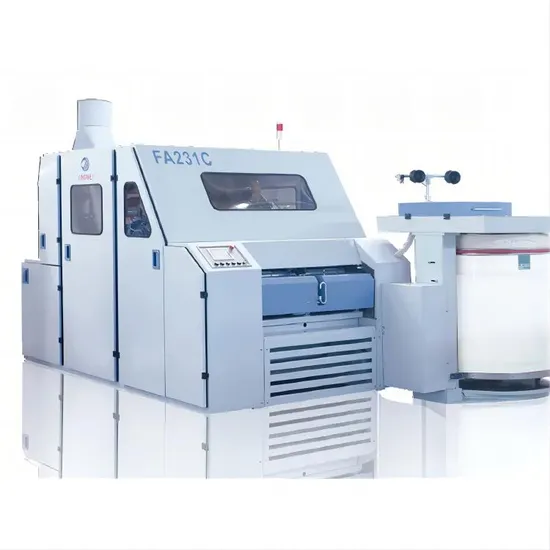

FA213C Carding Machines For Cotton Sliver Making Machine
24h Online Customer Service

Product Description
•Specially used for lap.
•Microcomputer control and digital relative parameter.
•Inverter-controlled feed roller and doffer drive for stepless speeds.
•Adoption of synchronous toothed belt for driving with steady running and low noise.
•Visible plastic adhesive filtering pipe with smooth surface, multi suction point on card for continuous suction with good suction efficiency. Continuously pressure detection.
•New type carding segment under licker-in are fitted and aluminum alloy front and rear stationary flats.
•New type cross apron for sliver guiding, free of maintenance, easy operation.
•Totally-enclosed safety covers are of reliability, convenience and beautiful look.
•There are many automatic stop motion devices.
•There are front and rear web cleaner fitted.
•New type of metallic card clothing with high quality.
•In reverse direction of cylinder running flats increase carding action and improve web quality.
•For flat stripping the comb is replaced by the brushing roller and cleaning roller.
SPECIFICATION

Production	60kg/h
Delivery speed	180m/min
Working width	1000mm
No. of revolving flats(working/total)	30/82
Continuous suction	3500 m³/h
Air pressure	-920pa

CYLINDER & LICKER-IN
The construction of driving cylinder and licker-in with flat belt is simple and its starting is smooth and stable.
DOFFER
The doffer is driven by an inverter and a synchronous belt which permits stepless variations of the speed.
CROSS APRON
New type cross apron for sliver guiding, free of maintenance, easy operation.
FEED ROLLER
Feed roller is driven by an electronic frequency converter which permits stepless variation of its speed and is controlled to be synchronized with doffer by the computer.
MULTI SUCTION POINT
Multi suction point on card. Continuous suction, pressure continuous measure.
FLATS
Reversed revolving flats increase carding action and improve web quality. For flat stripping comb is replaced by the brushing roller and cleaning roller.
PRESSURE MECHANISM
Special pressure mechanism provides the consistence between the pressure and the measurement.
DESIGNED AS AN ENTIRETY
Electronic control cabinet and safety-cover are designed as an entirely with beautiful profile.
MAIN SPECIFICATION

---
