Factory Price Concrete Pumps Hb52K 52m Filling Height Concrete Pumping Machines

Product Description

Product Description

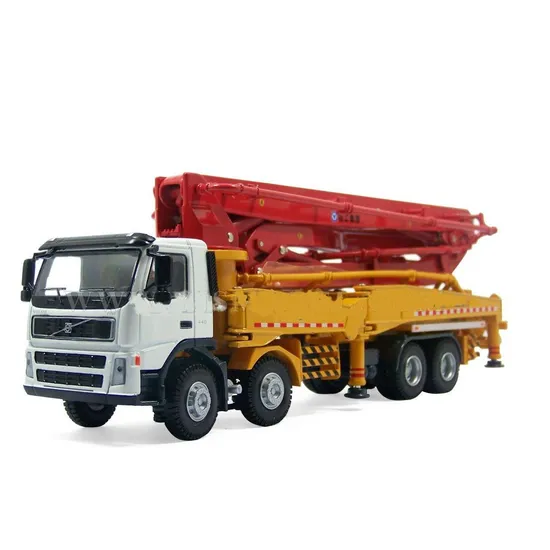

Truck Mounted Pumps HB52K
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
1. Long - Reach Boom:
The 52 - meter boom provides an extensive working radius, enabling the concrete pump truck to reach far -off areas on the construction site without frequent repositioning. This significantly improves work efficiency and reduces the time and effort required for concrete placement.
2. Factory - Direct Price:
Being sold at factory price, it offers excellent cost - effectiveness. Customers can enjoy high -
quality equipment without the additional mark - ups associated with middlemen, making it a budget - friendly option for construction companies.
3. High Quality:
Constructed with top - grade materials and advanced manufacturing techniques, the HB52K ensures reliability and durability. It can withstand the rigors of continuous use on construction sites, reducing the risk of breakdowns and costly downtime.
4. Efficient Pumping:
The advanced pumping system is capable of delivering concrete smoothly and at a high volume. It can handle different types of concrete mixes, ensuring consistent and accurate pouring for various construction applications.
5. Reliable Truck Chassis:
Mounted on a reliable truck chassis, the HB52K offers good mobility and stability. It can easily navigate to different construction sites, and the chassis provides a stable platform for the pumping operation, even on uneven terrains.
Product Parameters

Description	Unit		Parameter value
Outline dimension	mm		13120×2500×3990
Overall weight	kg		34000
Chassis	Model		ZZ5347V484MD1
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4800+1400
	Tire		315/80R22.5
Engine	Model		MC11.40-40
	Max. power	kW	297
	Max. torque	N·m/(r/min)	1900/1000~1400
	Displacement	L	10.518
	Emission standard		Eruo IV
Pumping system	Theoretical output	m³/h	170
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	23~26
	Delivery cylinder diameter ×stroke	mm	φ260×2000
	Max. diameter of pumping concrete	mm	≤40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	51.5
	Reach depth	m	36.1
	Slewingradius	m	46
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	240
	Unfolding angle of the 5th section	°	210
	Unfolding angle of the 6th section	°	120
Stabilizer span	Longitudinal span of stabilizer	mm	9540
	Transverse span of front stabilizer	mm	9150
	Transverse span of rear stabilizer	mm	10060
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	1200
