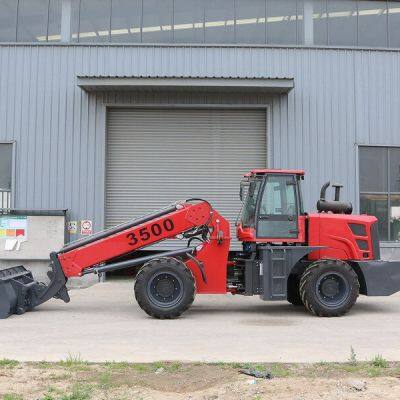

3.0T Capacity Telescopic Boom Loader ZL30
Applications:
The telescopic wheel loader features a telescopic boom for additional height, added versatility and greater production. This wheel loader with telescopic arm offers excellent maneuverability, overall machine stability and the telescopic boom provides extra reach for stacking and dumping.
Features:
1. Telescoping boom for extra reach, stacking and dumping height.
2. Operator station offers a spacious and functional layout for operator comfort.
3. Hydraulically operated quick-hitch allows for efficient changing from one accessory to another without leaving the operator's station.
4. All wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.
3.0T Telescopic Boom Loader ZL30
Technical Specifications:
1. Rated Load: 3000kg
2. Total Weight: 8000kg
3. Rated Bucket Capacity: 1.3CBM
4. Bucket Width: 2280mm
5. Dumping Height (fully raised height to the pin): 6500mm
6. Overall Dimensions (L x W x H): 7550*2280*3250mm
7. Engine Model: CUMMINS 6BT5.9-C125
8. Engine Type: Six-cylinder, Inline, Water-cooled, Turbocharged Diesel Engine
9. Rated Power of Engine: 92kW
10. Rated Speed of Engine: 2000rpm
11. Hydraulic Torque Converter: Integrated Hydraulic Torque Converter
12. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
13. Max. Speed: 35km/h
14. Model of Axle: Hub Reduction Axle
15. Wheel Tread: 1750mm
16. Wheel Base: 2800mm
17. Drive Mode: 4-wheel Drive
18. Steering Mode: Articulated Hydraulic Steering
19. Hydraulic System Working Pressure: 20MPa
20. Hydraulic System Working Pump Type: Gear Pump
21. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
22. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
23. Tyre Type Specification: Pneumatic Tire 16/70-24-16PR (Width: 440mm, Diameter: 1280mm)
24. Front Tyre Pressure: 0.40Mpa
25. Rear Tyre Pressure: 0.35Mpa
Optional Parts and Functions:
Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Extra Hydraulic Lines, Rear Hydraulic System, LED Lights, and Floating Function, etc.
Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
