GOST Standard Anp Three Phase Motor 18.5kw Electric Motor Supplier

Product Description

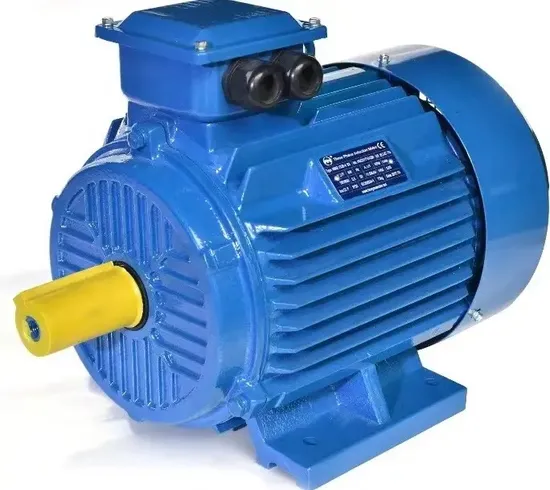

Operating Conditions ANP series three-phase asynchronous motor is specially designed for Russia market, whose terminal box locates on the top of motor. The motor has a very compact structure and attractive appearance, the sizes and mounting dimensions are all in conformity with Gost standard GOST R 51689. Features:high efficiency, energy-saving, little noise, high starting torque, reasonable price, easy construction etc Application:drilling machines, pumps, fans, mixer, transport machines, food machines, agriculture machines and equipments, etc. Unsuited to be used in that place where combustible, explosive or corrosive gas exist and other special requirements forbidden.Equipped with re-greasing system when the frame size is 160MM and above.Can be equipped with PTC Labeling Standards Series Code + Frame Size + Iron Core Length No. + Motor Poles Example: A N P 90 L - 2 ANP -means Russia Gost three phase electric motors 90the second part means the height of motor center (when the motor has no foot, it is same to motor with foot) Lthe third part means the base iron core length no.(S-Short Base, M-Medium Base, L-Long Base) 2-the forth part means the motor poles, this is a 2 poles motor, synchronous speed is 3000 r/min (50

Russian GOST electric motor Rated Output
Rated Output	0.12-315 kW; 0.16-430 hp
Poles	2, 4, 6, 8, 10 poles
Frequency	50 Hz 60 Hz
Rated Voltage	220 380 660 V
Protection Class	IP54, IP55
Insulation Class	F
Mounting Methods	IM1081 IM2081 IM3081
Frame Size	56~355frame
Housing Material	Cast iron
Brand Bearing	C&U,NSK,SKF,FAG
Cooling Methods	IC411

---
