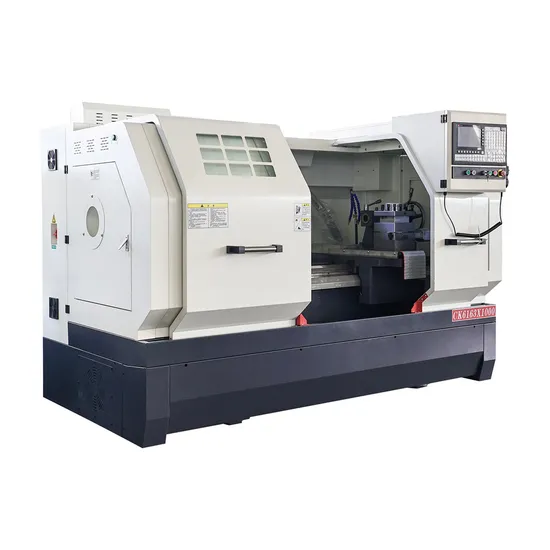

Machine Tool CNC Flat Bed Lathe for Sale

Product Description

CNC lathe is a semi-closed-loop control CNC lathe, the host adopts reinforced bed with integral foot, guide rail plasticized, ball screw drive; good dynamic characteristics, high precision, strong rigidity; protection adopts half/full closed protection, double sliding door.
FEATURES
1)Mechanical, electrical and hydraulic integration and modular design, reasonable layout, compact structure, pleasant operation and convenient maintenance.
2) It adopts reinforced bed and integral bed foot, guide rail plasticized, good rigidity and high machining precision.
3)The spindle adopts high-quality bearings and is equipped with external separate lubrication system. The screw bearing adopts high-precision paired screw special bearing with high precision and long service life.

APPLICATION Machining of shafts and tubes below Φ275×850/1350/1850(mm); Maximum rotary diameter of bed Φ500mm. Machining of shafts (or disks) with complex geometry, numerous dimensions and high precision requirements. Processing cylindrical surface, conical surface, stepped surface, spherical surface and other rotating surface parts. Detailed Photos

Product Parameters

Items	Unit	CK6140	CK6150	CK6163	CK6180	CK61100	CK61125
Max. turning dia. on the bed	mm	400	500	630	800	1000	1250
Max. turning dia. of the puller	mm	200	300	330	450	630	850
Max. processing length	mm	750/1000/1500	7500/1000/1500/2000	1000/1500/2000/3000	1000/1500/2000/3000	1500/2000/3000	1500/2000/3000
fast moving	m/min	X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8	X:6 Z:8
tool holder	Electric 4-position
workpiece processing accuracy	IT6-IT7

Packaging & Shipping
