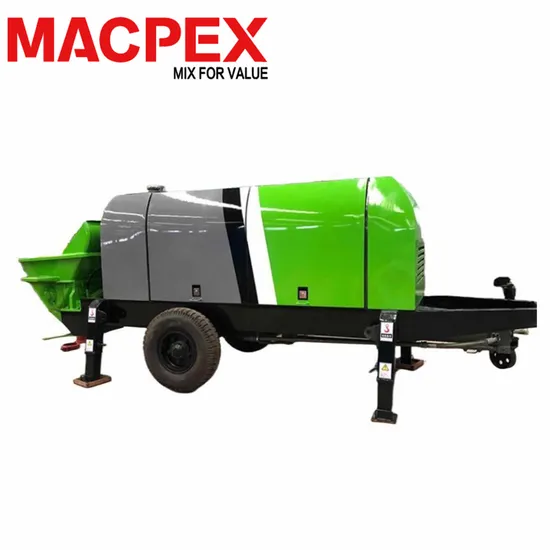

Introducing the MACPEX Diesel Powered Concrete Conveying Pump
Get ready to experience the ultimate in reliable and efficient concrete pumping with the MACPEX Diesel Powered Concrete Conveying Pump! This powerful pump is designed to meet the demands of outdoor construction sites and non-powered work environments, making it the perfect choice for any project.
What sets the MACPEX Diesel Powered Concrete Pump apart is its integration of mechanical, electrical, and hydraulic technologies. This means it can withstand even the harshest environments while delivering reliable performance every time. Plus, its diesel engine meets emission standards, making it an environmentally friendly option.
But that's not all! The MACPEX Diesel Powered Concrete Pump features an innovative "automatic adjustment of diesel engine speed" technology. This means the pump detects the speed of the diesel engine during the pumping process and adjusts it accordingly. The result? Smooth and reliable pumping operations while saving fuel. It's a win-win!
Performance Characteristics:
Electrical System:
The entire machine is PLC programmable and controlled by a computer, offering optimized design and simple operation. And with the wireless remote control, you can easily operate the pump from a distance. Talk about convenience!
Pumping System:
The dual cylinder full hydraulic pumping system improves work efficiency and reduces the failure rate. You can count on this pump to get the job done right, every time.
S-Pipe Distribution Valve:
Equipped with a floating wear-resistant ring, this valve automatically compensates for wear, ensuring good sealing and a simple and reliable structure. It offers two working modes: low-pressure large displacement and high-pressure small displacement. Versatility at its finest!
Reversing System:
With electric and hydraulic control for reversing, this pump provides a sensitive response and excellent stability. You'll have full control over your pumping operations.
High Outlet Pressure:
Need to reach great heights? No problem! This pump can horizontally convey up to 400-500 meters and vertically convey up to 150-180 meters. It's perfect for high-rise buildings and long-distance construction.
Cooling System:
Say goodbye to water sources! The hydraulic oil cooling system utilizes an oil air cooler, ensuring high cooling power and maintaining the working oil temperature below 60 ºC. Construction just got a whole lot more convenient.
Hydraulic Oil Circuit:
The open hydraulic system improves reversing speed and efficiency. You'll experience smooth and seamless operations with this pump.
Anti Pump Function:
With automatic pressure protection, this pump reduces pipeline blockage, improves work efficiency, and extends the service life of pipelines. It's all about efficiency and longevity.
Hydraulic Oil Tank:
The large capacity liquid accumulation hydraulic oil tank ensures smooth operation. You can rely on this pump to keep going, no matter the task at hand.
Are you ready to experience the power and efficiency of the MACPEX Diesel Powered Concrete Conveying Pump? Whether you're working on high-rise buildings or long-distance construction, this pump is designed to meet your concrete pumping needs with reliability and ease. Get yours today!
Detailed Photos
Product Parameters

Diesel Concrete pump		MD20-08-40R	MD30-10-48R	MD40-11-60R	MD50-13-66R	MD60-13-90R	MD60-16-120R	MD80-13-120R	MD80-16-129R	MD90-16-176R
Theo conveying capacity (m3/h)	high pressure	12	16	19	22	29	41	48	45	56
	low pressure	21	30	43	50	58	62	80	76	94
Theo conveying pressure (MPa)	high pressure	8	9.5	11	13	13	16	13	16	16
	low pressure	4.2	4.5	5.3	6.2	6.4	9.2	6.4	9.2	9.2
Conveying height (m)	level	350	400	450	550	550	650	550	650	650
	vertical	110	130	150	180	180	220	180	220	220
Rated power of the main power system (Kw)		39.6	56	66	82	112	120	120	129	176
Diesel engine fuel consumption (L/h)		5.8	8.3	10	12.5	15.8	19.5	19.5	21	28
Distribution valve form		S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve
Distribution valve form		20/25	25/30	25/30/40	25/30/40	40/50	40/50	40/50	40/50	40/50
Concrete slump (mm)		100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230
Power type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Loading volume (m3)		0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.6	0.6
Loading height (mm)		1200	1180	1300	1350	1400	1400	1400	1400	1400
Weight		2500	3100	3360	4000	4800	6000	6600	6600	6800
Dimensions(mm)		4300x1670x1680	4300x1670x1680	4850x1670x2070	5000x1670x2070	5465X1850X1850	6500x2160x2600	6500x2230x2600	6500x2230x2600	6500x2230x2600

Electrical Concrete pump		ME15-13-30		ME30-08-37		ME50-13-55		ME60-16-90		ME80-16-110
Theo conveying capacity (m3/h)	high pressure	7		13		22		37		47.5
	low pressure	15		26		46		63		78
Theo conveying pressure (MPa)	high pressure	13		9.5		13		16		16
	low pressure	6		4.5		6.2		9.2		9.2
Conveying height (m)	level	550		400		550		650		650
	vertical	180		130		180		220		220
Rated power of the main power system (Kw)		30		37		55		90		110
Distribution valve form		S valve		S valve		S valve		S valve		S valve
Distribution valve form		20/25		25/30		25/30/40		40/50		40/50
Concrete slump (mm)		100-230		100-230		100-230		100-230		100-230
Power type		Motor		Motor		Motor		Motor		Motor
Loading volume (m3)		0.34		0.4		0.5		0.6		0.6
Loading height (mm)		1050		1180		1350		1400		1400
Weight		1480		2200		3200		5200		5600
Dimensions(mm)		3380×1270×1450		3770×1420×1620		4300×1670×1680		6200×1882×1965		6200×1882×1965
