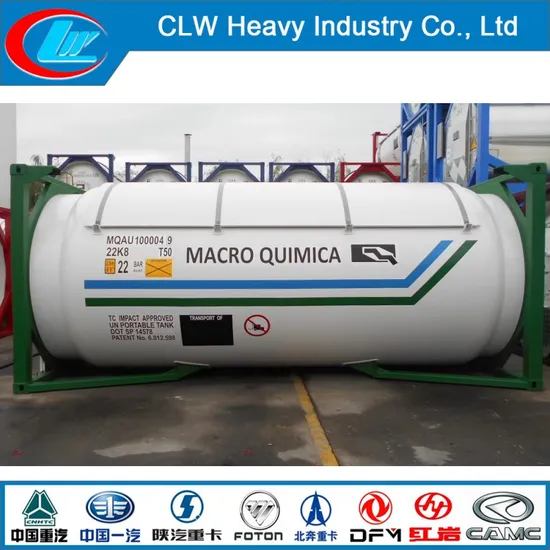

3c ISO BV Lr CCS ASME ISO LPG Tank Container 25m3 LPG Tank Container Pressure Vessel Hot Sale

Product Description

Asme ISO lpg Tank Container 25m3 LPG Tank Container pressure vessel Hot Sale 1.Volume:20000 liters 250000 liters 30000 liters 35000 liters 40000 liters 45000 liters
2.Authentication:3C, ISO,BV,LR,CCS,BUREAU VERITAS or Lloyd's Register
3.the manufactory for LPG tank cantainer
Technique Parameters

	Volume (cbm)	DN (mm)	Thickness (mm)		Quality(kg)		Overall Dimension(mm)
			Shell	Head	Tank	Filling
Filling Medium liquid amonia Pressure 2.05MPa Corrosion Allowance 2mm Medium Density 520kg/m2	20	2100	16	16	6400	9880	6162x2132x2710
	25	2100	16	16	7760	12350	7762x2132x2710
	32	2400	16	16	8920	15808	7516x2432x3010
	50	2400	16	16	13100	24700	11516x2432x3010
	50	2800	20	20	14470	24700	8620x2840x3420
	80	2800	20	20	20980	39520	13520x2840x3420
	80	3200	22	22	21710	39520	10524x3244x3830
	100	2800	20	20	26010	49400	16740x2840x3420
	100	3200	22	22	26190	49400	13024x3244x3830
Filling Medium Dimethylether Pressure 1.15MPa Corrosion Allowance 1.5mm Medium Density 580kg/m2	50	2700	10	12	8620	27550	9174x2724x3310
	65	2700	10	12	10480	35815	11824x2724x3310
	80	2700	10	12	12280	44080	14454x2724x3310
	80	3200	12	12	13080	44080	10504x3224x3810
	100	3200	12	12	15560	55100	13004x3224x3810
	120	3400	12	14	17940	66120	13808x3424x4010
Material of tank and main pressure parts			Q345R/Q370R
Standard			GB150 TSG R0004-2009
Safety valve of selection fitting			Safety valve, column magnetic reversible level meter, pressure gauge, thermometer, cut-off valve

Advantages of Products
Advanced sandblast, spray painting, purging, anti-corrosion procedure.
Advanced mechanical property test. Make sure the lowest shrinkage and the highest dimensional stability under low temperature.
Strict NDT procedure. A&B welding joint perform 100%RT. C&D welding joint perform 100%MT.
Factory Scene
Our company has solid technology, flawless inspection,advanced equipments, reliant quality and flexible modes of operation. What's more, it has roundly passed the ISO9001-2000 and the 3C(China Compulsory Certification).
Our leading varieties include more than 300 types of trucks such as Water truck,Fecal sucktion truck,Garbage truck,Refuse compactor,Sewage sucktion truck,Fuel tank,High-altitude operation truck,Truck with crane,Dump truck,Instructional truck,Van truck, Semi-trailer,Fire engine,Spares,Refrigerator truck,Water wagon,Tractor, High-altitude water truck,Bulk cement truck,Chemical liquid truck,Concrete mixer truck,ect.

Customers
We have customers from worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east,African, South-african, Australian and so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
