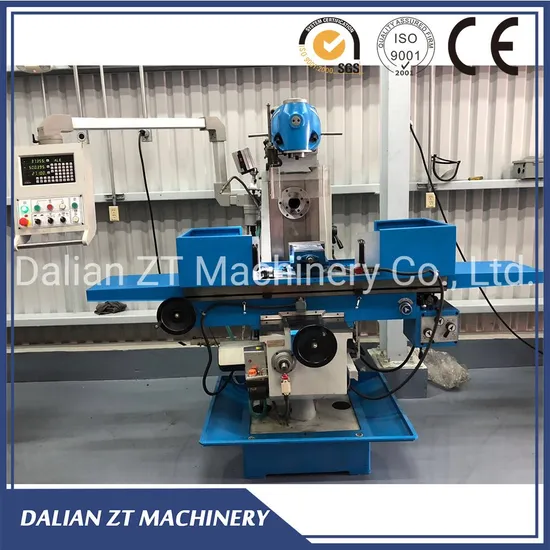

Universal Knee Type Horizontal Vertical RAM Milling Machine XL6236

Product Description

Strong & good rigidity; H/V milling head
Tech specifications

Item	XL6236
Spindle taper	7:24 ISO40 (V); 7:24 ISO50 (H)
Distance from spindle centerline to column surface	350-850mm
Distance from spindle nose to worktable	210-710mm
Distance from spindle center line to worktable	0-500mm
Distance from spindle center line to arm	175mm
Spindle speed	11 steps 35'-1600r/min (V) 12 steps 60'-1800r/min(H)
Worktable size	1250x360mm
Longitudinal worktable travel	1000mm
Cross worktable travel	320mm
Vertical worktable travel	500mm
Worktable longitudinal/cross power feed	8 steps 15-370mm/min
Worktable elevating power feed	Rapid: 540mm/min
Worktable T-slot	3x18x80mm
Main motor	3kW (V); 4kW(H)
Worktable feed motor	750W
Worktable elevation motor	1.1kW
Coolant pump	90W
Coolant flow	25L/min
Overall dimensions	2220x1790x2040mm
Weight of machine	2400kg

FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
