Stainless Steel Water Tank Fabrication Rolling Machine

Product Description

* Brief Introduction:

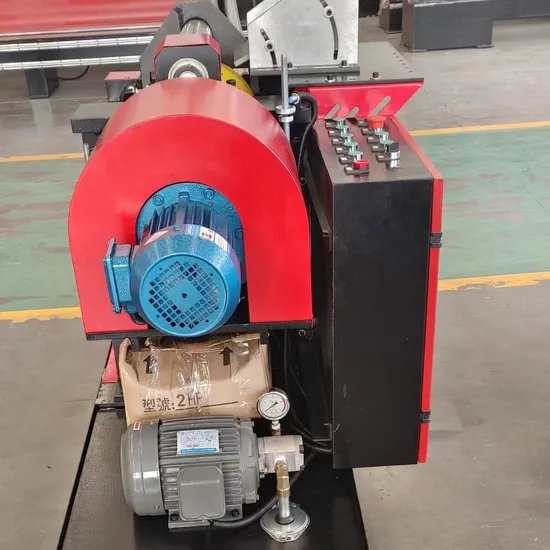

This two-rollers hydraulic automatic rolling machine is developed by our company for therolling of sheet metal,
making products of thin (normally within 4mm) cylinder type. So if your products are tubular or cannular or
cylindrical shape, I think you find the very suitable rolling machine.It is suitable for automotive parts, solar water
heaters, food processing machinery, metals machinery and other industries.
The following sheet metal material of the work-piece are available: carbon steel, stainless steel, aluminum
and copper sheet.
* Outside Dimension
* Machining Result
* Technical Data

Standard Hydraulic Two Rollers Rolling Machine
ITEM	XZJYJ-500	XZJYJ-700	XZJYJ-1000	XZJYJ-1500
Rated Power(KW)	3	3	6	6
Hydraulic Pressure Range(Mpa)	3~8	3~8	4~12	4~12
Work-piece Thickness(mm)	0.8~2.5	0.8~2.5	0.8~3.5	0.8~3.5
Work-piece Diameter(mm)	90~300	100~300	150~450	200~450
Work-piece Length(mm)	50~500	50~700	50~1000	50~1500

Customized Heavy Hydraulic Two Rollers Rolling Machine
ITEM	XZJYJ-Z-500	XZJYJ-Z-700	XZJYJ-Z-1000	XZJYJ-Z-1500
Rated Power(KW)	6	6	7.7	7.7
Hydraulic Pressure Range(Mpa)	4~12	4~12	5~16	5~16
Work-piece Thickness(mm)	0.8~6	0.8~6	0.8~6	0.8~4
Work-piece Diameter(mm)	100~450	100~450	200~600	200~600
Work-piece Length(mm)	100~500	100~700	100~1000	100~1500

* Application
* Our Factory Workshop
* Advantages
1 High precision, high speed.
2 High rolling efficiency, forming by once time.
3 Easy operation.
4 Low maintain cost.
* FAQ
Q: Will we have to change the mould for different diameters?
A: Yes, one diameter needs one mould , which can guarantee the roundness precision.
Q: How long will we have to change the mould for different diameters?
A: It is about five minutes one worker with simple mechanical crane or arm.
Q: What parameters do we have to offer while sending inquiry?
A: Your work-piece length,diameter,wall thickness and material.
Q: Are you a factory or trading company?
A: We are a factory which license of import and export.
Q: Where is your factory located? How can I visit there?
A: Our company is located in Yixing city, Wuxi, Jiangsu Province China.
The nearest airport is Changzhou Benniu International Airport ( 45mins driving).
The nearest trainstation is Changzhou Railway Station or Changzhou North Railway Station.
We would like to pick up you in airport or railway station.
* Welcome to visit us!

---
