China Manufacturer Cooling Conveyor Belt for Powder Coating Processing Equipment

Product Description

CE Certificated Air Cooling Band for Powder Coating Production Line
JFY Series Air Cooling Band for Powder Coating Production Line
1.Application:
Generally is used in powder coating production line to cool the extruded material. An stainless steel caterpallar along with cold air solidfy melted material and lead them to crusher at the end of the cooling band.
Flakes can be adjusted from 1-3mm in thickness and 5-10mm in width.
2.Main Characteristic:
1. Cooling roll has been designed specially to max. cool efficiency
2. Hard chrome plated cooling roll
3. Cooling roll and crusher equipped with overloaded alarm and protection system
4. Chain anti distortion system
5. Reverse motion possibility for emergency case
3.Main Technical Parameter:

Model	JFY-408N	JFY-508N	JFY-510N		JFY-610N	JFY-612N
Capacity(kg/h)	200	300~400	400~500		450~550	500~600
length(mm)	4000	5000	5000		6000	6000
Roller length(mm)	800	800	1000		1000	1200
Roller diameter(mm)	Φ273	Φ273	Φ273		Φ273	Φ273
Roller diameter(mm)	Φ168	Φ168	Φ168		Φ168	Φ168
Drive power(kw)	0.75	0.75	1.1		1.1	1.1
Crusher drive	0.37	0.37	0.37		0.37	0.37
Fan power	65W×4	65W×6	65W×8		65W×8	65W×8
Cooling system	Air-cooled
Variable speed	Adjustable speed by means of frequency inverter
Overall dimension(mm)	4500*1200*1400	5500*1200*1400		5500*1400*1400	6500*1400*1400		6500*1600*1400

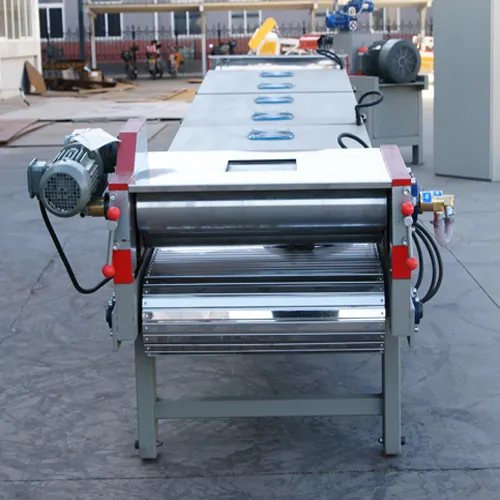

4. Machine Pic:
5.Company Profile:
Yantai Yuanli Machinery Manufacturing Co., Ltd. with more than 29 years experiments, offer wide range of services in powder coating field from A to Z including know-how, technology, machinery, raw material, technical support.
Our product has been supplied all around China and exported to international market like, Italy, Iran, Turkey, India, Thailand, Egypt, Malaysia, Czech, Poland, Russia, USA.
6.Our Certificate:
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T190012008 idt ISO9001-2008 for the Design, manufacturer and sales of electrostatic power production equipment.
7.Our Advantage & Service:
-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.
Formulation Provided (our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
We sincerely welcome customers from all over the world come to visit and negotiation with us!
.

Office: Add: No..28 Qunying Road, Fushan High Tech. Zone, Yantai, China.

---
