PF0607-PF1320 Mining Impact Crusher Price of Stone Crusher Machine

Product Description

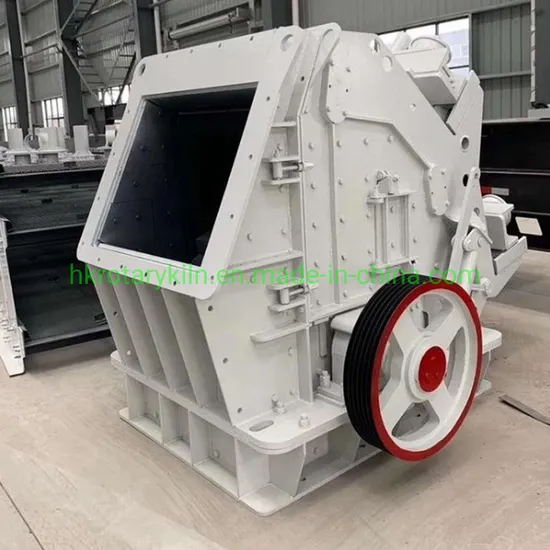

PF0607-PF1320 Mining Impact Crusher Price of Stone Crusher Machine

1.Product Description of Impact Crusher

Product Name	Impact crusher
Suitable for	Crushing Ores and Stone
Color	Customizable

1. Impact crusher is a new product designed by our company after absorbing the asvanced technology at home and abroad.
2. Our Henan Impact Stone Crusher production function to deal with side length of not more than 500 mm, not more than 350Mpa compressive strength of the various coarse, medium and fine material( granite, limestone, concrete, etc).
3. Impact Stone Crusher is widely used for crushing hard materials in the following industries: mineral, quarry, water conservancy and hydropower, high way, rail way, chemical industry, building materials and so on.
2. Working Principle of Impact Crusher
The high efficiency impact crusher is mainly composed of the chassis, grate bar, motor, rotor, plate hammer, counterattack liner and so on.
Its main working principle is basically the same as that of the impact crusher: the rotor rotates at high speed under the driving of the motor. The plate hammer fixed on the rotor produces a strong impact force on the falling material, which causes the material to be loosely broken, thus achieving the purpose of crushing.
The high efficiency fine crusher is improved in the working area, the second crushing chamber is added, the broken material in the crushing chamber is broken again, the crushing efficiency is increased, the granularity control is more accurate, the nonconformity rate is effectively reduced, and the work flow is more simplified, fast and efficient.
Crushed material reaches granularity of the request, the machine is discharged from the discharge port to obtain the finished product.

3. Product Features and Factory Pictures of Impact Crusher
Features of Crusher Impact
1: Simple structure;
2: High quality rotor with heavy design and strict inspection;
3: Larger bearing specification and higher carrying capacity;
4: Particularly used to crush harder and causticity materials;
5: Rotor analysis ensures stableness and reliability.
4.Size Information of Impact Crusher

Model	Specifications (mm)	Feeding size Opening (mm)	Max Feeding Size (mm)	Capacity (t/h)	Power (KW)	Weight (Excluding motor Kg)
PF-0607	644×740	320×770	100	10-20	30	4000
PF-0807	850×700	400×730	300	15-30	30-45	8130
PF-1007	1000×700	400×730	300	30-50	37-55	9500
PF-1010	1000×1050	400×1080	350	50-80	55-75	12127
PF-1210	1250×1050	400×1080	350	70-120	110-132	14000
PF-1214	1250×1400	400×1430	350	130-180	132-160	18579
PF-1013	1000×1300	650×1350	400	80-120	90-110	12000
PF-1315	1320×1500	860×1520	500	160-250	180-260	19000
PF-1320	1320×2000	860×2030	500	360-350	300-375	24000

5. Working Sites of Impact Crusher
6.Packing&Shipping of Impact Crusher
7.Company Introduction

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!

8.FAQ

1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 15 days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.--------------------------------------------------------------------------------------
Kindly Note: 1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). feeding material
2). Feeding material MAX. Size (mm)
3). Final size (mm)
4). Capacity (t/h)
Upon we got your message we shall give you our favorable offer in short time.

---
