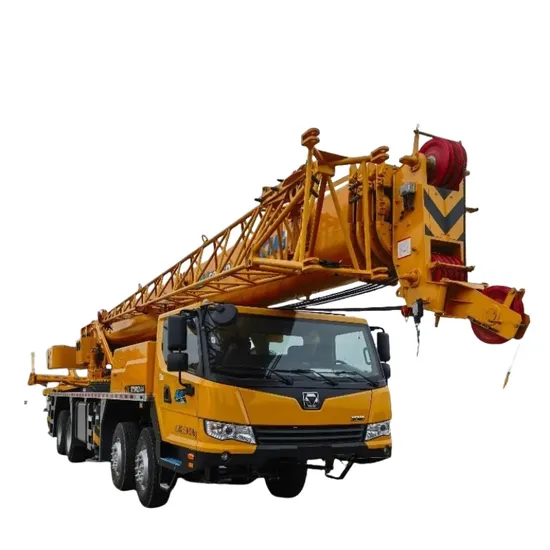

50 Ton High Reach Hydraulic Truck Crane for Heavy Lifting Truck Crane

Product Description

50 Tons 45M 251Kw Truck Crane QY50K5D Cranes Mobile Cranes with Jib Boom from China Top Brand Factory
Outriggers Four outriggers, H-type arrangement, dual-stage outrigger beam. Hydraulic control is used to extend and retract the outrigger beams and jacks. There are manual control levers fitted at each side of the chassis. There is a level gauge and a speed regulating button on each control panel. Each outrigger jack is equipped with a dual-way hydraulic lock. Float dimension: Φ450 mm Reaction force of outrigger at max. lifting load: 494kN Transmission Mechanical transmission, 9-forward speed and 1-reverse speed, with a synchronizer Axle High strength axles, made by famous manufacturer. 1st and 2nd axles are for steering, and 3rd and 4th axles are for driving. Hydraulic system Gear pump driven by chassis engine is used for lifting, luffing, telescoping and slewing operations. Special throttle load sensing design, more stable system minimum flow, more reasonable system rigidity, more prominent fine-control and smoothness; dual-pump confluence technology for lifting, luffing and telescoping operations; air-cooled hydraulic oil cooler is fitted. Hydraulic oil tank capacity: 735 L Control system Pilot hydraulic proportional control through left and right levers is used for controlling the superstructure. Stepless speed
regulation is available Slewing system A single-row, four-point contact-ball external slewing bearing is driven by hydraulic motor, with built-in planetary gear reducer and constant-closed brake equipped, and may continuously slew 360°. Power control and free slewing function as well as stepless speed regulation are available.
Product Specifications Model NO. QY50K5D Certification GS, CE, ISO9001 Condition New Maximum Lifting Height 54m Maximum Lifting Weight 50ton Shaft Number 4 Crane Jib Five-Arm Type Straight Arm Machine Weight 38600 Kg Engine Shangchai Rated Power 251kw/1900(R/Min) Max. Traveling Speed 90km/H Min. Turning Diameter 24m Fuel Consumption Per 100 Km 35L Base Boom 11.5m Longest Main Boom 45m Longest Main Boom + Auxiliary Boom 54m Wheel Base 1470+4150+1350mm Track (Front/ Rear) 2032/1854mm Transport Package Suitable to Transmission Specification 14375*2650*3480mm Trademark / Origin Jiangsu, China HS Code 8429510000 Production Capacity 1000 Units/Month Detaied Photos
