Chuck CNC CE Approved Bench Lathe Machine with Good Service

US$22,000.00-32,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK6166
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Tool Post
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
530mm
Spindle Bore
105mm or 80mm
Tool Post Stations
32*32mm
Spindle Speed
27~135 55~270 160~805 325~1630 R/Min
Power of Main Motor
11 Kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100sets/ Year

Product Description

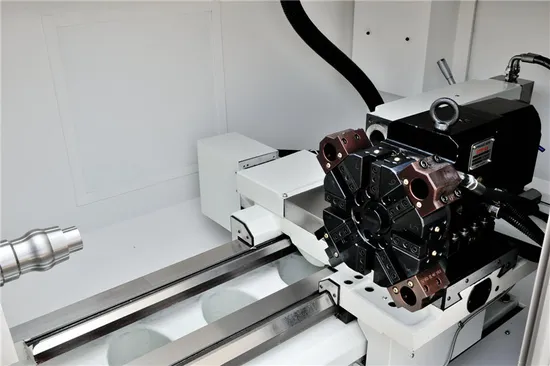

Chuck CNC CE Approved Bench Lathe Machine with Good Service
Product Description

Product Specifications
ITEMS CK6166 CK6156

Max. swing over bed		 Ø 660 mm Ø 560 mm

Max. swing over carriage		 Ø 430 mm Ø 330 mm

Width of bed 		405 mm

Maximum turned length 		750/1000/1500/2000/3000 mm

Max. turning length 		650/900/1400/1900/2900mm

Spindle nose		 D8 A2-8

Spindle bore		 Ø 105 mm Ø 80 mm

Cone hole diameter and taper of spindle hole		 Ø 113 1: 20 MT. No. 7

Steps of spindle speed(Manual)		 4 (Variable Within Each Step )

Range of spindle speed		 27~135 55~270 160~805 325~1630 r/min

Rapid feed for Axis Z		 10m /min

Rapid feed for Axis X		 8 m /min

Max. travel of Axis Z		 720/970/1270/1970/2970mm

Max. travel of Axis X		 365 mm 320 mm

Min. input		 0.001 mm

Tool post stations		 4-ways or 6-ways

Tool cross section		 32× 32 mm

External diameter		 Ø 75 mm

Taper of bore		 MT. No. 5

Max. Traverse		 150 mm

Power of main motor		 11 KW 7.5 KW

Power of cooling pump 		90W

Overall dimensions(L× W× H)		 2250/2500/3000/3500× 1250× 1580 mm 2250/2500/3000/3500/4500× 1200× 1520 mm

Net weight		 2800/3100/3700/4300/5300 kg 2700/3000/3500/4000/4600 kg
