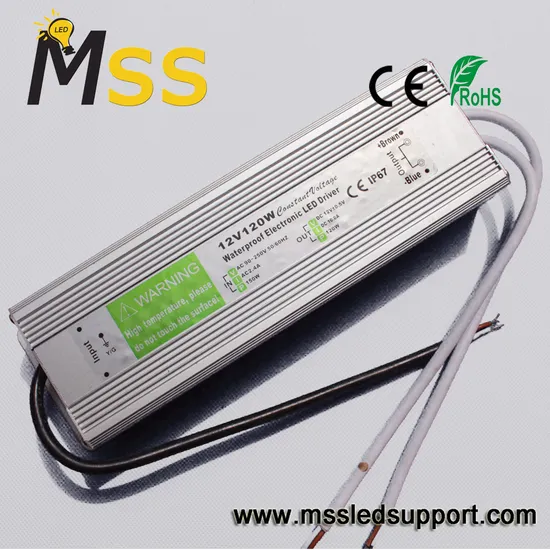

12V 120W Constant Voltage Waterproof IP67 LED Power Supply with Ce/RoHS

Product Description

Features:
-12V120W Waterproof LED power supply, constant voltage.
-Epoxy encapsulated, IP67. Suitable for outdoor lighting application.
-Automated protection for over load and over temperature
-Aluminum housing, good for heat dissipation
-Cooling by free air convection.
-Application: LED display, LED sign, LED channel letter, LED underwater light, LED outdoor decorative lighting.
Specification:

AC Input	Voltage	170-250V AC/90-130V AC	170-250V AC/90-130V AC
	Frequency	47-63 Hz	47-63 Hz
	AC Current	1.56A max@220V	1.56A max@220V
	Efficiency	0.85	0.85
DC Output	Voltage	12±0.5V	24±0.5V
	Current	0-10A	0-5A
	Rated Power	120W	120W
Protection	Over Load	20% exceed in short time is allowed
	Short Circuit	Auto recovery
	Over Voltaqge	≤280V
	Over Temperature	≤85°C
Others	Store Temperature	- 40--85°C
	Wokring Temperature	- 20--55°C
	Dimension/Weight	180x70x40mm / 1000g (Aluminium Housing)
	Packing/Carton Size	15PC/CTN 34×27×30cm
	Input Cable	VDE H03VV-F 3G×0.75mm2 (200mm)
	Output Cable	VDE H03VV-F 2×0.75mm2 (200mmx2)
Certificate	CE	Compliant to EN 60950-1:2006;EN61000-6-3:2001; EN 55022:2006+A1:2007; EN61000-4-2/-3; EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003
	RoHs	Free from lead, Cadmium, Mercury, Hexavalent Chromium and/or PBB &PBDE

Company Profile : MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;

---
