Machinery radial drilling machine Z3050X16 Radial Drilling Machine

Product Description

Machinery radial drilling machine Z3050X16 Radial Drilling Machine
Product Description

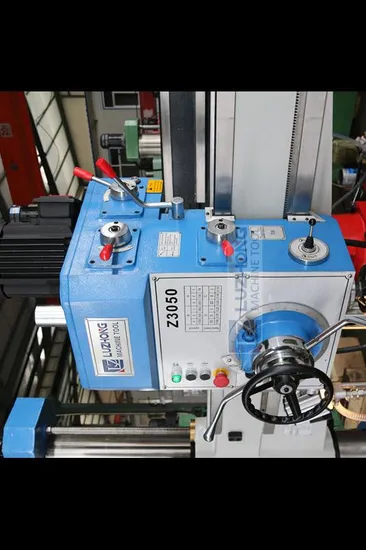

Detailed Photos
Product Parameters
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Product main technical parameters

SPECIFICATIONS	ZQ3050×16
Max.drilling dia (mm)	50
Distance from spindle axis and column surface(mm)	260-1150
Distance between spindle axis and column surface (mm)	360-1600
Spindle travel (mm)	210
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	78, 135,240,350,590,1100
Spindle speed step	6
Spindle feeding range(r.p.m)	0.10-0.56
Spindle feeding step	6
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Movements motor power (kw)	1.5
Weight (kg)	2500
Overall dimensions (mm)	2170×950×2450

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
