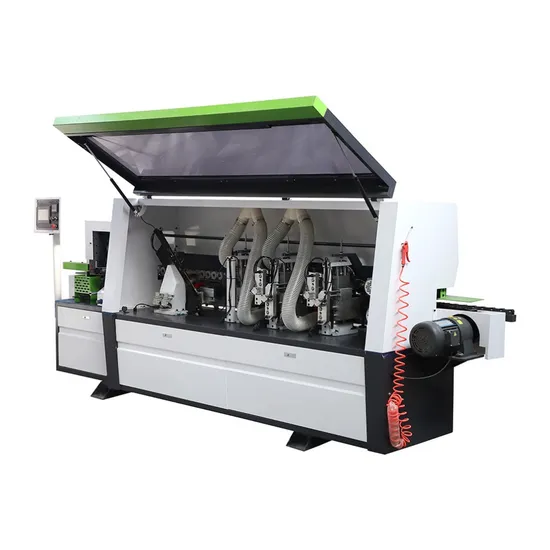

Wood Based Panel Woodworking Automatic Wood Edge Banding Machine with Trimming and Polishing Buffing PVC Edge Bander Machine for Carpenter

Product Description

Company Profile
YINGZHUO is a professional machinery and equipment technical enterprise combines the scientific research,explore,manufacture,sales and service together.
The company's motto is ''Customer first. Good will is the best policy'' Accordingly. it pures high quality goods and customer service and has won the titles ''High Standard'',''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers.
Appplicable products: solid wood panels, fibreboard, particleboard,MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester,melamine and wood, and so on.
Product Parameters

Model	YZ-S265	YZ-S265A	YZ-S265C
Feeding speed	18-23m/min	18-23m/min	18-23m/min
Panel length	≥80mm	≥80mm	≥80mm
Panel width	≥50mm	≥50mm	≥50mm
Band width	12-60mm	12-60mm	12-60mm
Band thickness	0.4-3mm	0.4-3mm	0.4-3mm
Weight	1200kg	1500kg	1800kg
Total power	9kw	13.5kw	15kw
Pneumatic pressure	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa	0.6Mpa-0.8Mpa
Machine size	4000*900*1500mm	4800*900*1500mm	6000*900*1500mm

1. The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.
2. End trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequercy motor fast cutting surface smoothly.
3. Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high-frequencymotor fast cutting structure to ensure the trimming plates smoothly.
4. The scraping mechanism uesd for removing the tool marks left by trimming and cutting process, to ensure the trimming plates smoothly.
5.The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface. Detailed Photos
Packaging & Shipping
FAQ:
1.How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.
2.What payment do you accept?L/C and T/T or other ways.3.What is your delivery time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
4.What's your warranty?If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.5.What's your srvices?One-stop service, meet needs of the customers from individuals to international companies.
OEM service accepted.
After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.

---
