Shredder

Product Description

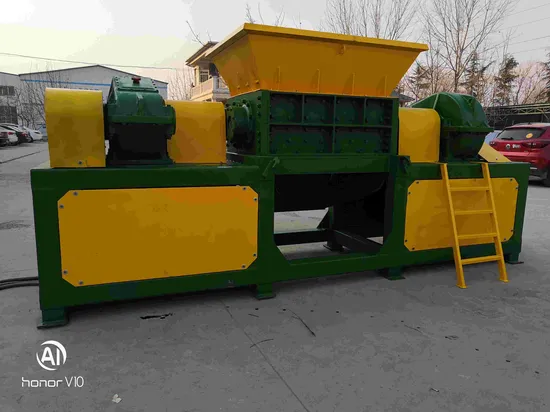

HSN1200SS Shredder
Brief Introduction
HSN1200SS Shredder is made of thick steel plate welded precisely with accuracy connection, and then can use long time, adopts high quality motor with pure copper wire to ensure operation stable and avoids high temperature and non-burning machine, forging re-ignition heat treatment tempering and insulation fine grinding blades can be used more durable, drive components with coupling links to reduce vibration, effective protection of main shaft and gearboxes.
Main Features
Stable and reliable working performance High efficiency and easy operation
Technical Specifications

HSN MACHINERY Shredder
	MODEL	HSN1200SS
1	Motor for shredder	4P 2x47kw
2	Gearbox	JIQ650 two
3	Diameter of main shaft	135mm
4	Speed of main shaft	15-18rpm
5	Blade Size	Φ300x33mm
6	Material of Blade	40Cr
7	Control box	individual
8	Input Size	1200*700mm
9	Output Belt	400*1100mm
10	Production	3000kg/hour
11	Machine size	4300*1200*2200mm
12	Machine Weight	3200kgs
13	Price FOB Qingdao
14	Lead time

Application
HSN1200SS Shredder is used as a coarse shredding machine and is generally used to process unprocessed raw materials or corner materials to make them smaller in size. Compared with other crushers, the main shaft speed is low then the noise is low.

---
